Lenovo IdeaCentre Tower 08IRR9

Performance

• Processor Family: Supports 13th/14th Gen Intel Core i3/i5/i7 or Intel 300

• Chipset: Intel B760

• Memory:

  • Slots: Two DDR5 UDIMM slots (Dual-channel capable)

  • Max Memory: Up to 32GB DDR5-5600

  • Type: DDR5-4800 / 5200 / 5600 (Non-ECC)

• Storage:

  • Max Support: Up to two drives (1x 3.5″ HDD + 1x M.2 SSD)

  • HDD: 3.5″ SATA HDD, up to 2TB

  • SSD: M.2 2280 PCIe NVMe 4.0 x4 SSD, up to 1TB

  • RAID: No support

Graphics & Display

• Graphics: Integrated Intel UHD Graphics (710, 730, or 770, depending on CPU)

• Max Resolution: 3840×2160 @ 60Hz (via HDMI)

• Monitor Support: Supports two independent displays (VGA + HDMI)

Multimedia & Audio

• Audio Chip: High Definition Audio, Realtek ALC623-CG codec

• Speakers: No built-in speakers

Connectivity

• WLAN & Bluetooth: Wi-Fi 6 (802.11ax 2×2) + Bluetooth 5.2

• Ethernet: Gigabit Ethernet (RJ-45)

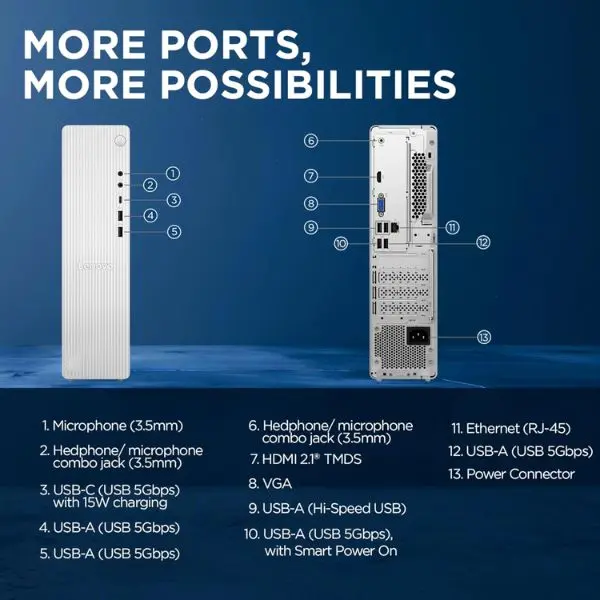

Ports

• Front Ports:

  • 1 x USB-C (USB 3.2 Gen 1, 15W charging)

  • 2 x USB-A (USB 3.2 Gen 1)

  • 1 x Headphone/Microphone combo jack (3.5mm)

  • 1 x Microphone jack (3.5mm)

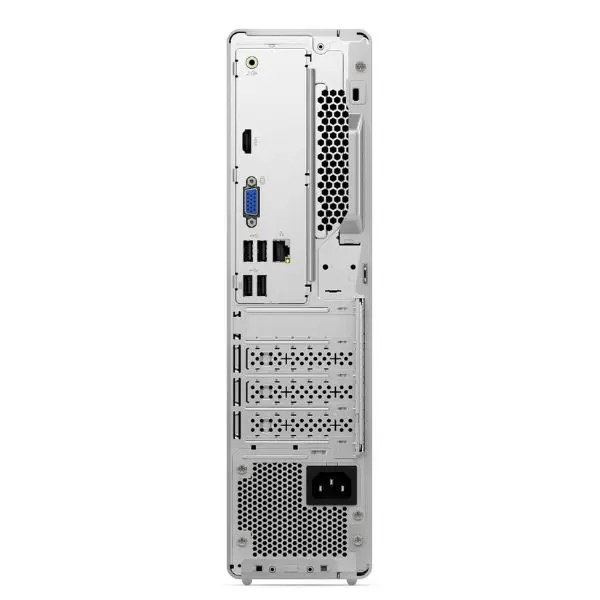

• Rear Ports:

  • 4 x USB-A (USB 2.0)

  • 1 x HDMI 2.1

  • 1 x VGA

  • 1 x Ethernet (RJ-45)

  • 1 x Audio-out (3.5mm)

  • 1 x Power connector

Power Supply

• Options: 180W (85% Efficiency) or 260W (90% Efficiency)

• Input: 100-240V, 50-60Hz

Design & Mechanical

• Form Factor: Tower (8.2L)

• Dimensions (W x D x H): 89 x 291.4 x 339.5 mm (3.5 x 11.5 x 13.4 inches)

• Weight: ~4.25 kg (9.4 lbs)

• Case Colors: Grey, Grey with Sunglow Orange front, or Luna Grey

• Bays: 1 x 3.5″ disk bay

• Expansion Slots: Two M.2 slots (one for WLAN, one for SSD)

Input Devices & Software

• Keyboard: Lenovo Calliope Keyboard (USB, Black or Cloud Grey) or No keyboard

• Mouse: Lenovo Calliope Mouse (USB, Cloud Grey or Black) or No mouse

• Operating System Options:

  • Windows 11 Pro

  • Windows 11 Home

  • Windows 11 Home Single Language

  • No preload OS
