E-Image Follow Focus System For Gimbal

Key Features

Wireless Focus Motor & Controller
0.8 MOD Cine Gear & 1 x Gear Ring
15mm Rod-Mounted Motor
Gimbal-Mounted Control Wheel
0.18 Nm Torque Motor
Set Manual A-B Limits

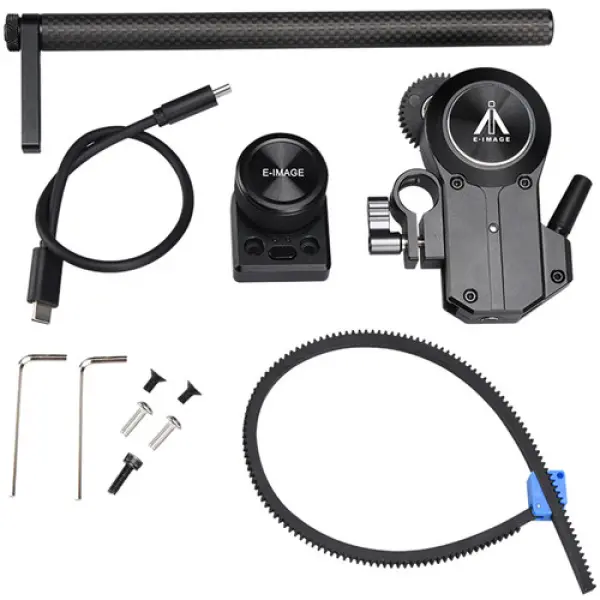

Includes Hardware & USB Type-C Cable

The Horizon One Follow Focus System from ikan enables you to wirelessly control your lens focus via a Horizon One gimbal-mounted control wheel. Compatible with most lenses, the focus gear and the included gear ring are both industry-standard 0.8 MOD. This system enables uninterrupted gimbal movement and easy, on-the-fly focus adjustments.

System features include both auto and manual calibration, a quiet, brushless motor, and the ability to set manual A-B limits for precise focus moves.
System

Number of Channels
1

Maximum Range
300′ / 91.44 m

Wireless Frequency
2.4 GHz

Receiver / Motor

Included Drive Gear
0.8 MOD 40 Teeth

Rod Standard
15 mm Single Rod

Included Motors
1

Maximum Peak Torque
0.18 Nm

Motor I/O
1 x USB-C

Motor Noise
25 dB

Operating Temperature
68 to 131°F / 20 to 55°C

Weight
9.8 oz / 278 g

Transmitter / Controller

Camera Trigger
No

Packaging Info

Package Weight
2.055 lb

Box Dimensions (LxWxH)
10.2 x 7.1 x 3.1″
