Desview S5-5.5in 4K HDMI Field Monitor
No Return & No Refund
₨ 23,100.00
CompareKey Features
- 1920 x 1080 Screen Resolution
- Up to DCI 4K HDMI Signal Input
- OCR Screen—Thin Bezels/Larger Display
- HDMI and Headphone Inputs
- D-Tap to DC Power Cable Included

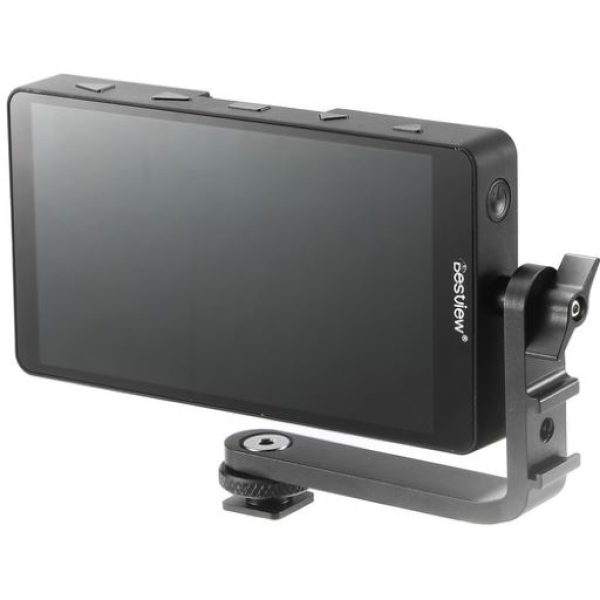

- L-Shaped Mounting Arm with Shoe Mount
- Histogram / Zebra / Anamorphic Mode
- Peaking / False Colors / Zoom-In
- Includes Protective Case and Sunhood

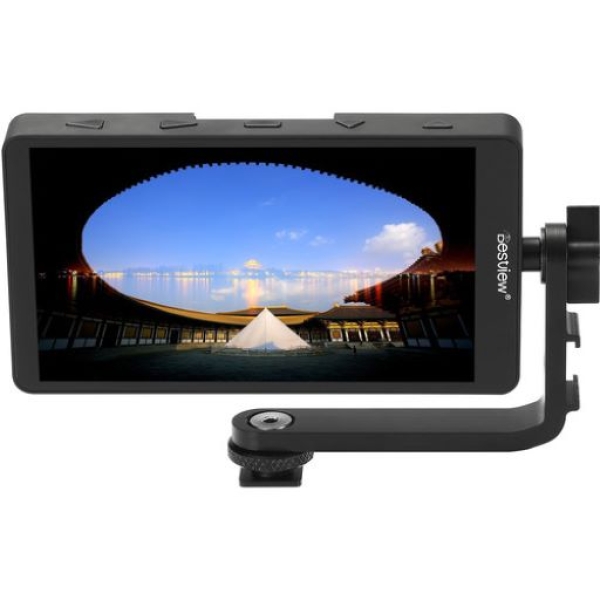

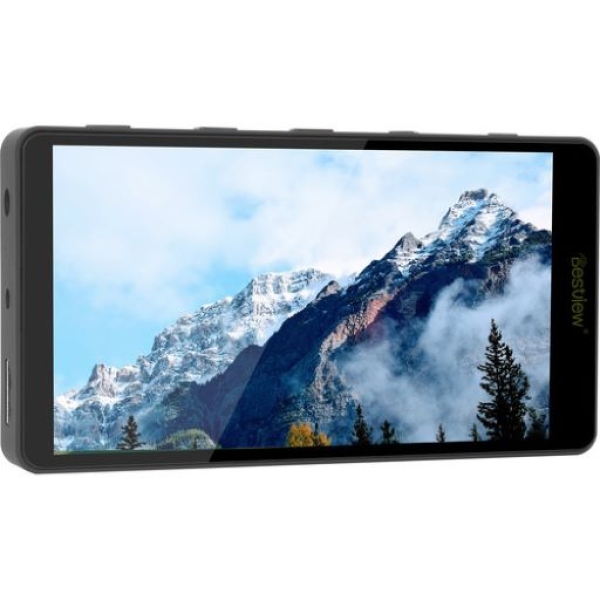

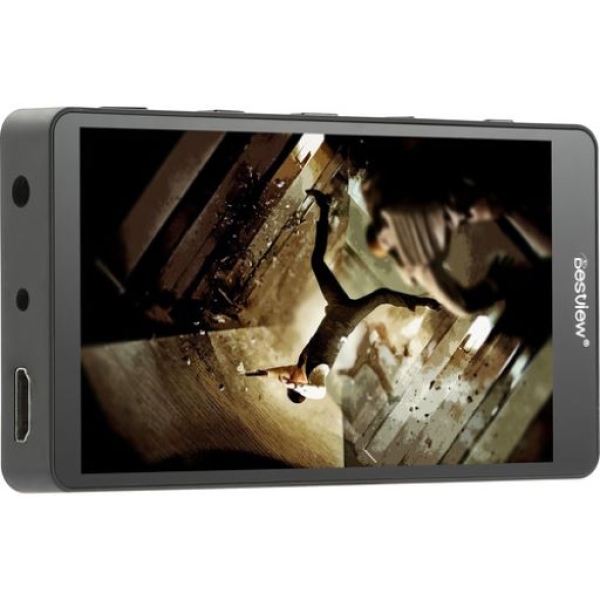

The Desview S5 is a compact and highly lightweight on-camera monitor featuring a 1920 x 1080 screen resolution and supporting up to DCI 4K HDMI signals. Its small size makes it a convenient on-camera option as well as a suitable complement to handheld gimbals. The S5 is designed with what Desview calls “OCR” (Optical Clear Resin) screen technology, which is a type of screen bonding that allows the monitor to have thinner bezels and hence more room to display an image.
Items Included
- Desview S5 5″ OCR Screen 4K HDMI On-Camera Monitor
- Sunhood
- HDMI Type-A to Type-C Cable
- D-Tap to DC Power Cable
- Protection Case
- L-Type Magic Arm
- Wipe Cloth
- Limited 1-Year Manufacturer Warranty
| Brands |
|---|
Desview S5 Specs
Key Specs
| Display Size | 5.0″ / 12.7 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | No |
| Video I/O | 1x HDMI Input |
| Battery Type | 1x L-Series |
| Power Consumption | 9 W (Maximum) |
| Mounting | 1x 1/4″-20 Female |
Display
| Panel Type | LCD |
| Display Size | 5.0″ / 12.7 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° (80/80) Vertical: 160° (80/80) |
| Touchscreen | No |
| Maximum Brightness | 330 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Pixels Per Inch (ppi) | 440 ppi |
| LUT Support | No |
| Video I/O | 1x HDMI Input |
| Audio I/O | 1x 1/8″ / 3.5 mm Headphone Input |
| Built-In Speaker | No |
| Power I/O | 1x Barrel Input |
| Other I/O | No |
| Media/Memory Card Slot | No |
Format Support
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/50 480i 576i |
Power
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1x L-Series |
| Power Consumption | 9 W (Maximum) |
Mounting
| Mounting | 1x 1/4″-20 Female |
General
| Dimensions | 5.6 x 3.1 x 0.8″ / 14.3 x 7.8 x 2.1 cm |
| Weight | 0.34 lb / 153.00 g |
Packaging Info
| Package Weight | 1.45 lb |
| Box Dimensions (LxWxH) | 9.25 x 7 x 2.5″ |
