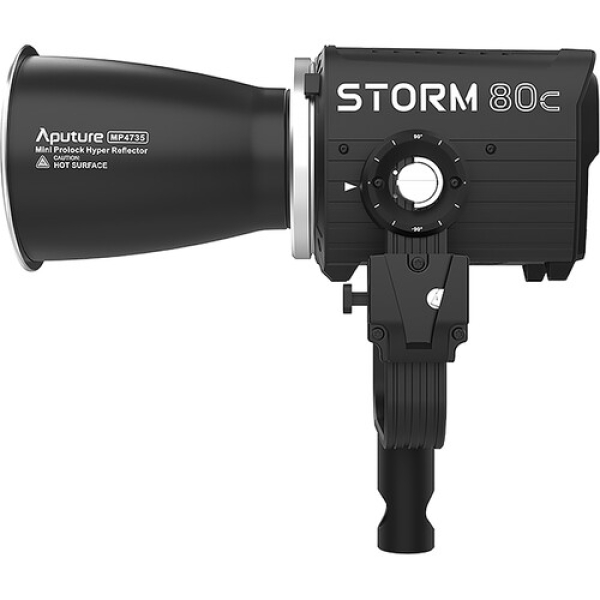

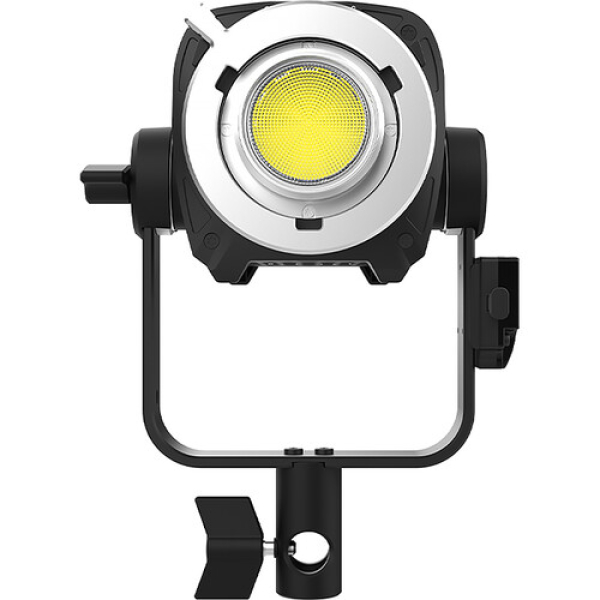

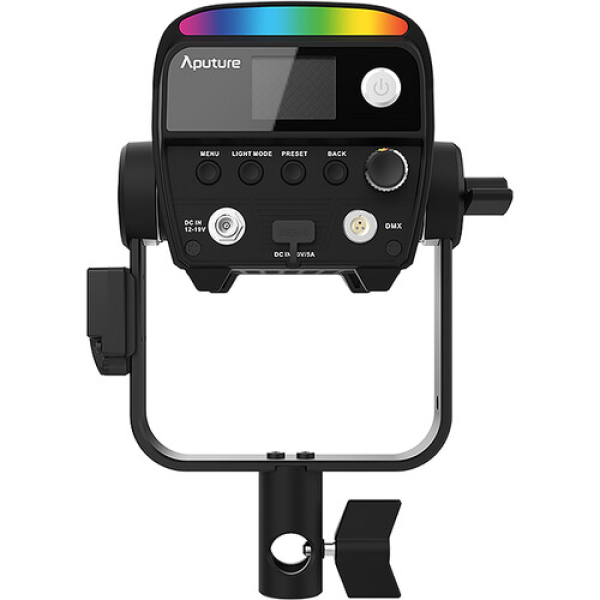

Aputure STORM 80c BLAIR-CG LED Monolight

Key Features

Compact, Portable Film/TV Light Fixture
Output: 19,850 Lux at 3.3′ w/ Reflector
1800-20,000K CCT; BLAIR-CG Color Control
80W Color-Tunable Point-Source Unit
Onboard, DMX, Sidus & App Control
AC Adapter & USB-C 100W Input Options
Optional V-Mount Battery Plate
SSI (D56) 88 | SSI (Tungsten) 84
4 Dimming Curves
Mini ProLock Bowens-Type Mount

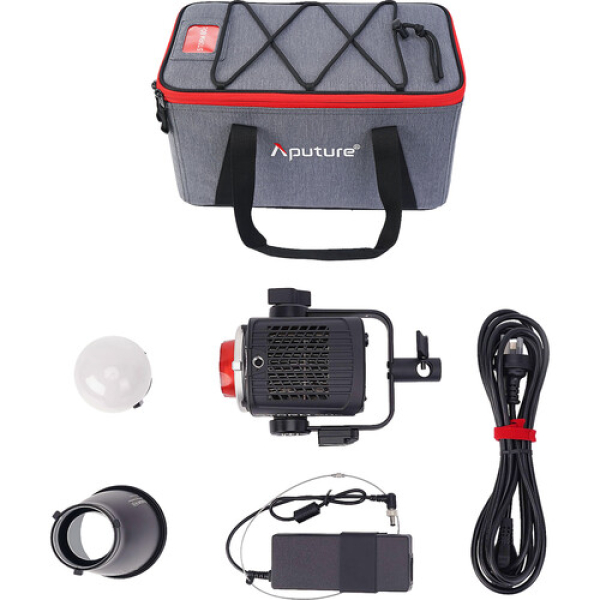

Adding a go-anywhere option to Aputure’s line of BLAIR-CG LED chipset lights, the STORM 80c BLAIR-CG LED Monolight is a compact point-source fixture offering a tunable palette with extremely high color accuracy. It pairs a powerful and innovative full-spectrum chipset with advanced white-point control, professional color accuracy, a secure Mini ProLock Bowens accessory mount, and sealed-seam IP65-rated construction for working in extreme conditions. The STORM 80c comes with a 35° hyper reflector, diffuser, soft case, mount cover, and power adapter with a cable.
Item Type
1x LED Monolight

Included Light Modifier
1x Reflector

1x Diffuser

Included Storage Case
Yes

Photometrics
35° at 3200K:

1806 fc / 19,443 Lux at 3.3′ / 1 m (with Reflector)

*Standardized Measurement Supplied by the Manufacturer

35° at 5600K:

1844 fc / 19,850 Lux at 3.3′ / 1 m (with Reflector)

*Standardized Measurement Supplied by the Manufacturer

Color Temperature
1800 to 20,000K

Color Modes
RGB

Color Accuracy Standard
CRI 97

TLCI 99

CQS 96 at 5600K

CQS 97 at 3200K

SSI 88

SSI 84

TM-30 Rf 96

TM-30 Rg 103

Dimming
App-Controlled / Built-In Dimmer / DMX (Continuous)

Front Accessory Mount
Proprietary

Wireless Remote Control Type
Bluetooth

Wireless CRMX

Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)

Battery Plate Type
1x V-Mount (Not Included)

Battery
1x V-Mount Rechargeable, 14.4 VDC (Not Included)

Input Power
100 to 240 VAC, 50 / 60 Hz

Power Consumption
100 W (Maximum)

Fixture Mounting
Accessory Mount

2x 3/8″-16 Female Thread

2x 3/8″-16 Female Thread (Via Yoke Mount)

Light Fixture

Item Type
1x LED Monolight

Included Light Modifier
1x Reflector

1x Diffuser

Included Storage Case
Yes

Lumens
13,201 (at 3200K)

Photometrics
35° at 3200K:

1806 fc / 19,443 Lux at 3.3′ / 1 m (with Reflector)

*Standardized Measurement Supplied by the Manufacturer

35° at 5600K:

1844 fc / 19,850 Lux at 3.3′ / 1 m (with Reflector)

*Standardized Measurement Supplied by the Manufacturer

Color Temperature
1800 to 20,000K

Color Modes
RGB

Color Accuracy Standard
CRI 97

TLCI 99

CQS 96 at 5600K

CQS 97 at 3200K

SSI 88

SSI 84

TM-30 Rf 96

TM-30 Rg 103

Dimming
App-Controlled / Built-In Dimmer / DMX (Continuous)

Beam Angle
35° with Included Reflector

60° Unmodified

Built-In Flash
No

Preprogrammed Effects
Yes

Umbrella Mount
No

Front Accessory Mount
Proprietary

Connectivity

Wireless Remote Control Type
Bluetooth

Wireless CRMX

Mobile App Compatible
Yes: Android & iOS

Power & I/O

Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)

Inputs/Outputs
1x USB-C Firmware Input/Output

1x XLR 3-Pin DMX Input

Battery Plate Type
1x V-Mount (Not Included)

Battery
1x V-Mount Rechargeable, 14.4 VDC (Not Included)

Input Power
100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable
1x Proprietary to IEC Cable

• 19 VDC at 5.3 A

Power Consumption
100 W (Maximum)

Mounting

Yoke Type
Manually-Operated Yoke

Fixture Mounting
Accessory Mount

2x 3/8″-16 Female Thread

2x 3/8″-16 Female Thread (Via Yoke Mount)

General

Display
LCD

Environmental Resistance
Dust/Water-Resistant (IP65)

Operating Conditions
-4 to 113°F / -20 to 45°C

Storage Conditions
-40 to 176°F / -40 to 80°C

Dimensions
5.8 x 4.1 x 4″ / 14.7 x 10.4 x 10.1 cm (Fixture without Yoke)

8.9 x 6.6 x 5.8″ / 22.5 x 16.7 x 14.7 cm (Fixture with Yoke)

Weight
2.23 lb / 1.01 kg (Fixture without Yoke)

2.98 lb / 1.35 kg (Fixture with Yoke)

0.9 lb / 405 g (Power Supply/Controller)
