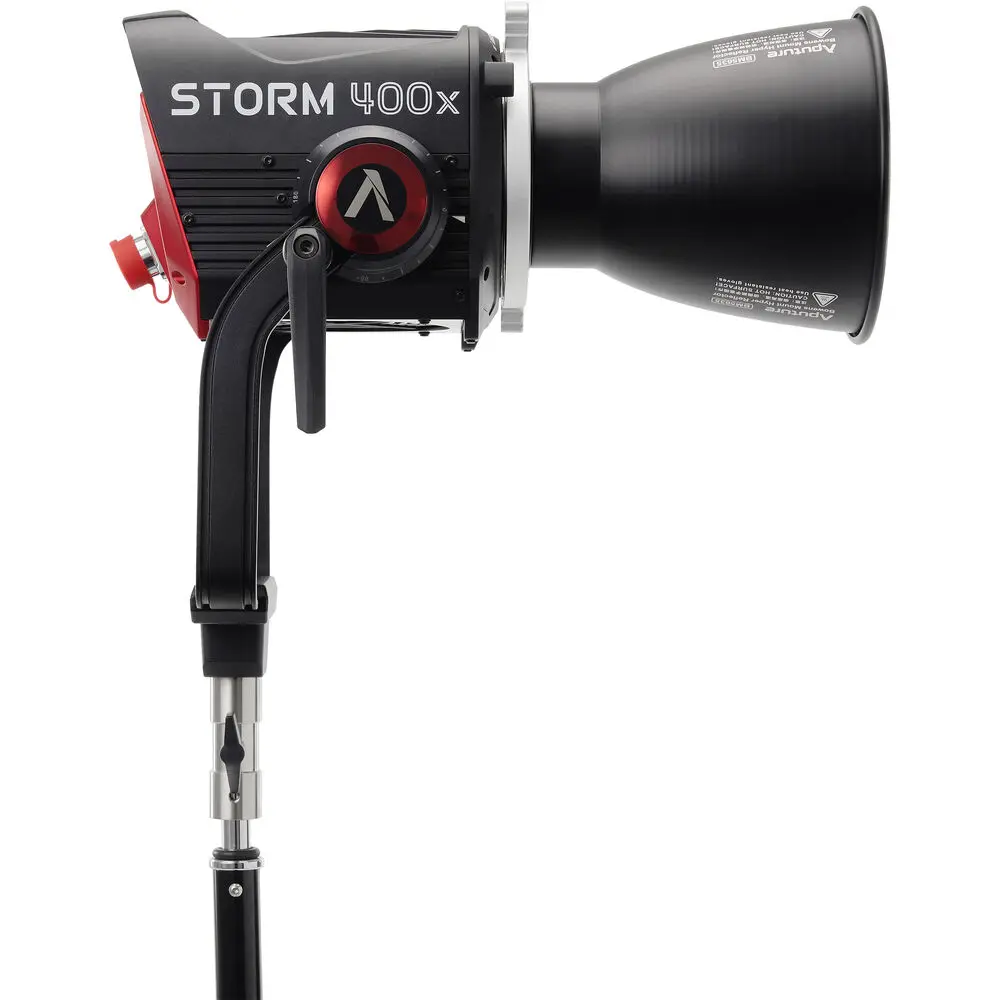

Aputure STORM 400x Tunable White LED Monolight (V-Mount)

Key Features

For Studio & Film/TV Production
Output: 27,100 Lux at 3.3′ (5600K)
2500-10,000K CCT, Green/Magenta Control
Battery or AC Power
Onboard, DMX, Art-Net, etherCON Control
Wireless Control via Bluetooth & CRMX
CRI 95 | TLCI 95 | SSI 87 | CQS 94
Four-Speed Fan Cooled
Bowens S Accessory Mount
Rated IP65 Weather Protected

Expanding the Aputure tunable white lighting lineup, the compact STORM 400x LED Monolight is a point-source workhorse, matching a powerful full-spectrum chipset with advanced dimming, professional color accuracy, a widely adaptable Bowens mount, and robust, IP65 construction for high-end set work under any circumstance.

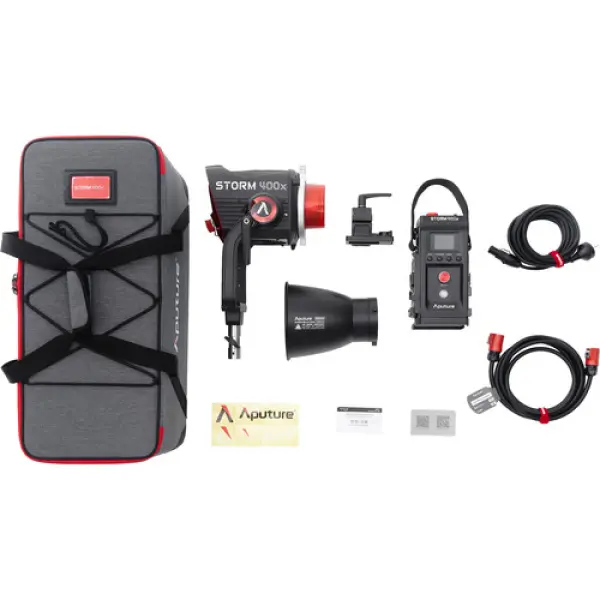

Item Type
1x COB LED Monolight

Included Light Modifier
1x Reflector

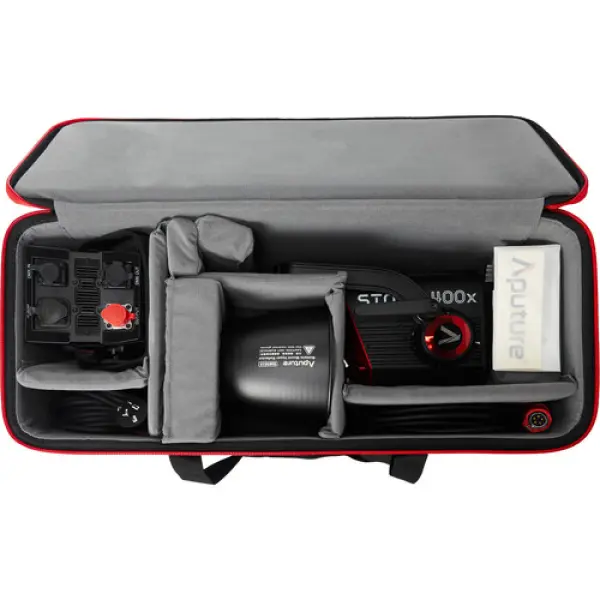

Included Storage Case
Yes

Photometrics
57° at 3200K:

2378 fc / 25,600 Lux at 3.3′ / 1 m (Unmodified)

275 fc / 2964 Lux at 9.8′ / 3 m (Unmodified)

35° at 3200K:

5722 fc / 61,600 Lux at 3.3′ / 1 m (with Reflector)

450 fc / 4850 Lux at 9.8′ / 3 m (with Reflector)

57° at 5600K:

2517 fc / 27,100 Lux at 3.3′ / 1 m (Unmodified)

291 fc / 3140 Lux at 9.8′ / 3 m (Unmodified)

35° at 5600K:

6001 fc / 64,600 Lux at 3.3′ / 1 m (with Reflector)

472 fc / 5090 Lux at 9.8′ / 3 m (with Reflector)

Color Temperature
2500 to 10,000K

Color Modes
Daylight, Tungsten

Color Accuracy Standard
CRI 95

TLCI 95

CQS 94

SSI 87 at 3200K

SSI 85 at 5600K

TM-30 Rf 95

TM-30 Rg 100

Dimming
App-Controlled / Controller Included / DMX / RDM (Continuous)

• 0.1 to 100%

Front Accessory Mount
Bowens ProLock

Wireless Remote Control Type
Bluetooth

Wireless CRMX

Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)

Battery (Not Included) *Requires Power Supply/Controller (Included)

Battery Plate Type
1x V-Mount (Built-In)

Battery
2x V-Mount Rechargeable, 14.4 to 14.8 VDC (Not Included)

Input Power
100 to 240 VAC, 50 / 60 Hz

Power Consumption
500 W (Maximum)

Fixture Mounting
1x 1-1/8″ Stud with 5/8″ Receiver (Via Yoke Mount)

Light Fixture

Item Type
1x COB LED Monolight

Included Light Modifier
1x Reflector

Included Storage Case
Yes

Photometrics
57° at 3200K:

2378 fc / 25,600 Lux at 3.3′ / 1 m (Unmodified)

275 fc / 2964 Lux at 9.8′ / 3 m (Unmodified)

35° at 3200K:

5722 fc / 61,600 Lux at 3.3′ / 1 m (with Reflector)

450 fc / 4850 Lux at 9.8′ / 3 m (with Reflector)

57° at 5600K:

2517 fc / 27,100 Lux at 3.3′ / 1 m (Unmodified)

291 fc / 3140 Lux at 9.8′ / 3 m (Unmodified)

35° at 5600K:

6001 fc / 64,600 Lux at 3.3′ / 1 m (with Reflector)

472 fc / 5090 Lux at 9.8′ / 3 m (with Reflector)

Color Temperature
2500 to 10,000K

Color Modes
Daylight, Tungsten

Color Accuracy Standard
CRI 95

TLCI 95

CQS 94

SSI 87 at 3200K

SSI 85 at 5600K

TM-30 Rf 95

TM-30 Rg 100

Dimming
App-Controlled / Controller Included / DMX / RDM (Continuous)

• 0.1 to 100%

Cooling System
Fan

Beam Angle
57° Unmodified

35° with Included Reflector

Built-In Flash
No

Preprogrammed Effects
Yes

Umbrella Mount
No

Front Accessory Mount
Bowens ProLock

Connectivity

Wireless Remote Control Type
Bluetooth

Wireless CRMX

Mobile App Compatible
Yes: Android & iOS

App Name: Sidus Link, Link Pro

Functionality: Remote Control

Wireless Range
328.1′ / 100 m

Power & I/O

Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)

Battery (Not Included) *Requires Power Supply/Controller (Included)

Inputs/Outputs
Light Fixture

To Power Supply/Controller: 1x Unspecified Power Input

Power Supply/Controller

To Light Fixture: 1x Unspecified Power Output

1x powerCON TRUE1 AC Power Input (100 to 240 VAC, 50 / 60 Hz)

1x XLR 5-Pin Male DMX Input

1x XLR 5-Pin Female DMX Output

1x USB-A Power/Firmware Input/Output (5 VDC at 0.5 A)

Battery Plate Type
1x V-Mount (Built-In)

Battery
2x V-Mount Rechargeable, 14.4 to 14.8 VDC (Not Included)

Input Power
100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable
Yes

Power Pass-Thru
No

Power Consumption
500 W (Maximum)

Mounting

Yoke Type
Manually-Operated Yoke

Fixture Mounting
1x 1-1/8″ Stud with 5/8″ Receiver (Via Yoke Mount)

General

Display
No

Environmental Resistance
Weather-Resistant (IP65)

Operating Conditions
-4 to 113°F / -20 to 45°C

Storage Conditions
-40 to 176°F / -40 to 80°C

Dimensions
1.4 x 0.8 x 0.8′ / 42.4 x 25.3 x 23.9 cm (Fixture)

9.6 x 5.6 x 5.4″ / 24.3 x 14.1 x 13.6 cm (Power Supply/Controller)

Weight
8.71 lb / 3.95 kg (Fixture with Yoke)

6.6 lb / 3 kg (Power Supply/Controller)
