Aputure STORM 1200x

Key Features

For Studio & Film/TV Production
Output: 96,100 Lux at 3.3′ (5600K)
2500-10,000K CCT, Green/Magenta Control
AC Power
Onboard, DMX, Art-net, etherCON Control
Wireless Control via Bluetooth & CRMX
CRI 95 | TLCI 95 | SSI 87 | CQS 96
Fan Cooled
Bowens S Accessory Mount
Rated IP65 Weather Protected

Full-Spectrum Power and Functionality

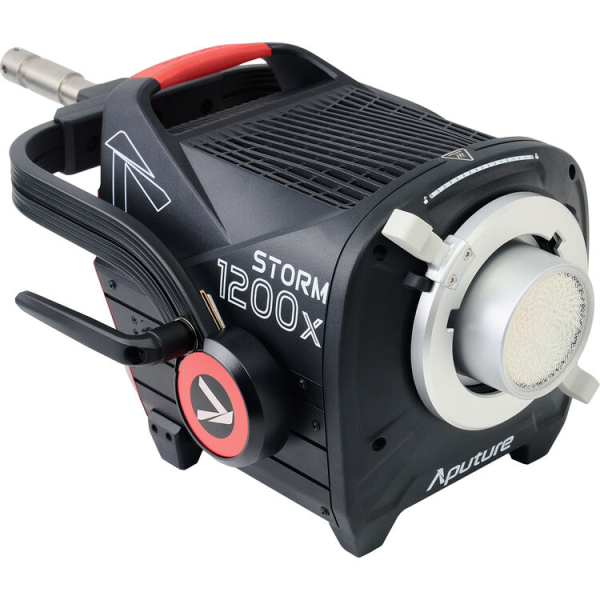

Pioneering a new approach to conventional white-point lighting, Aputure’s latest point-source workhorse, the STORM 1200x Tunable White LED Monolight, matches a powerful and innovative full-spectrum chipset with advanced dimming technology, professional color accuracy, a widely adaptable Bowens mount, and a robust, IP65-rated construction for high-end set work under any circumstance.

The BLAIR Chip Project

In its new STORM family of LED monolights, of which the 1200x is the first, Aputure is debuting its breakthrough BLAIR chipset that features blue, lime, amber, indigo, and red LEDs to deliver higher brightness levels and color accuracy levels. Rated 95 for both CRI and TLCI standards, the light also scores an 87 SSI rating at 3200 and 5600K color temperatures, and the multicolor diodes improve the light’s color-matching abilities. The full CCT range of 2500 to 10,000K is enhanced with green-magenta color correction for advanced white-point control, and the unit’s daylight 5600K output reaches 202,500 lux at 3.3′ when used with the included 45° reflector.

Advanced Dimming and Connectivity

The STORM 1200x comes with a controller that enables advanced dimming, control, and functionality. Stepless dimming is available from .1 to 100%, and flicker-free, color-accurate operation is possible even at the light’s lowest output. Wired and wireless options offer users a variety of control protocols, including DMX, LumenRadio CRMX, Art-Net, and sACN Ethernet, and app control via Bluetooth and the Sidus Link and Sidus Link Pro apps to integrate the light into professional lighting workflows.

Build and Performance

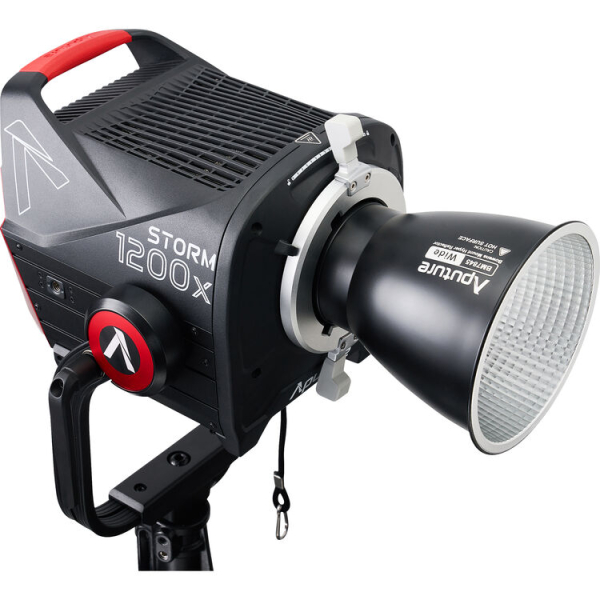

The light’s rugged construction is IP65 rated for dust and weather resistance, making it suitable for use in even the most demanding environments. The light features a Bowens S mount, allowing the STORM 1200x the broad suite of Bowens-compatible modifiers with easy coupling and secure locking.
Aputure STORM 1200x Specs

Key Specs

Item Type
1x COB LED Monolight

Included Light Modifier
1x Reflector

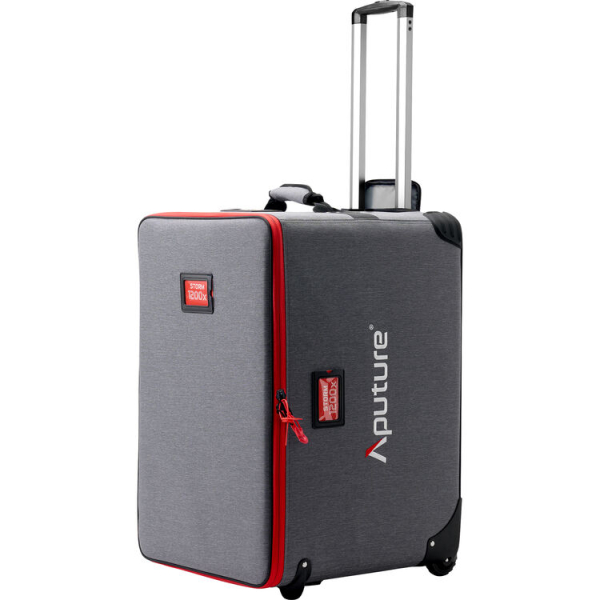

Included Storage Case
Yes

Photometrics at 3.3′ / 1 m
3200K: 6998 fc / 75,330 Lux (Unmodified)

45° at 3200K: 16,303 fc / 175,500 Lux (with Reflector)

5600K: 7098 fc / 76,410 Lux (Unmodified)

45° at 5600K: 18,812 fc / 202,500 Lux (with Reflector)

Color Temperature
10,000 to 2500K

Color Modes
Daylight, Tungsten

Color Accuracy Standard
CRI 95 at 3000K

TLCI 95 at 3200K

CQS 96

SSI 87 at 3200K

SSI 87 at 5600K

TM-30 Rf 95

TM-30 Rg 100

Dimming
App-Controlled / Controller Included / DMX / RDM (Continuous)

• 0.1 to 100%

Front Accessory Mount
Bowens S

Wireless Remote Control Type
Bluetooth

CRMX (TimoTwo)

Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)

Input Power
100 to 240 VAC, 50 / 60 Hz

Power Consumption
1200 W

1550 W (Maximum)

Fixture Mounting
1x 1-1/8″ Stud (Via Yoke Mount)

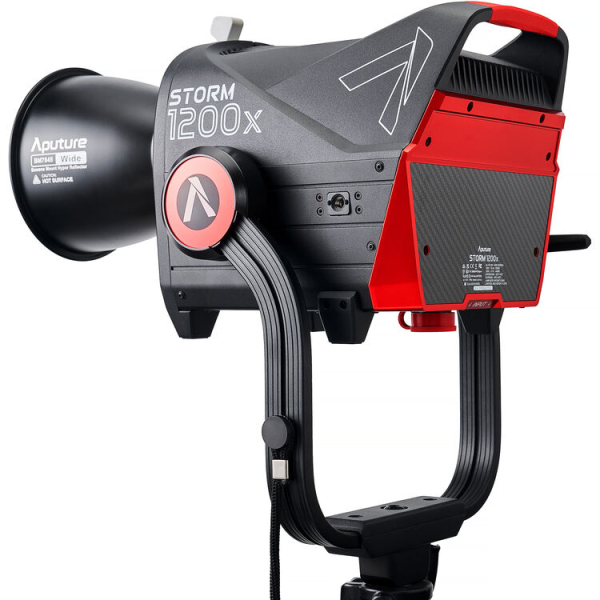

Light Fixture

Item Type
1x COB LED Monolight

Included Light Modifier
1x Reflector

Included Storage Case
Yes

Photometrics
3200K:

6998 fc / 75,330 Lux at 3.3′ / 1 m (Unmodified)*

777 fc / 8370 Lux at 9.8′ / 3 m (Unmodified)

294 fc / 3170 Lux at 16.4′ / 5 m (Unmodified)

45° at 3200K:

16,303 fc / 175,500 Lux at 3.3′ / 1 m (with Reflector)*

1811 fc / 19,500 Lux at 9.8′ / 3 m (with Reflector)

641 fc / 6910 Lux at 16.4′ / 5 m (with Reflector)

5600K:

7098 fc / 76,410 Lux at 3.3′ / 1 m (Unmodified)*

788 fc / 8490 Lux at 9.8′ / 3 m (Unmodified)

300 fc / 3230 Lux at 16.4′ / 5 m (Unmodified)

45° at 5600K:

18,812 fc / 202,500 Lux at 3.3′ / 1 m (with Reflector)*

2090 fc / 22,500 Lux at 9.8′ / 3 m (with Reflector)

656 fc / 7070 Lux at 16.4′ / 5 m (with Reflector)

*Standardized Measurement Calculated Internally Based on Closest Distance

Color Temperature
10,000 to 2500K (in CCT Mode)

Color Modes
Daylight, Tungsten

Color Accuracy Standard
CRI 95 at 3000K

TLCI 95 at 3200K

CQS 96

SSI 87 at 3200K

SSI 87 at 5600K

TM-30 Rf 95

TM-30 Rg 100

Dimming
App-Controlled / Controller Included / DMX / RDM (Continuous)

• 0.1 to 100%

Cooling System
Fan

Beam Angle
45° with Included Reflector

Built-In Flash
No

Preprogrammed Effects
Yes

Umbrella Mount
No

Front Accessory Mount
Bowens S

Connectivity

Wireless Remote Control Type
Bluetooth

CRMX (TimoTwo)

Mobile App Compatible
Yes: Android & iOS

App Name: Sidus Link Pro

Functionality: Remote Control

Wireless Range
328.1′ / 100 m

Power & I/O

Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)

Inputs/Outputs
Light Fixture

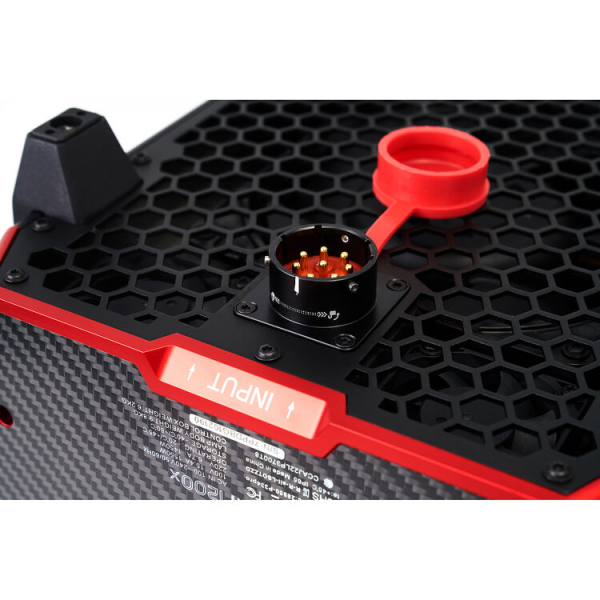

To Power Supply/Controller: 1x Unspecified Power Input

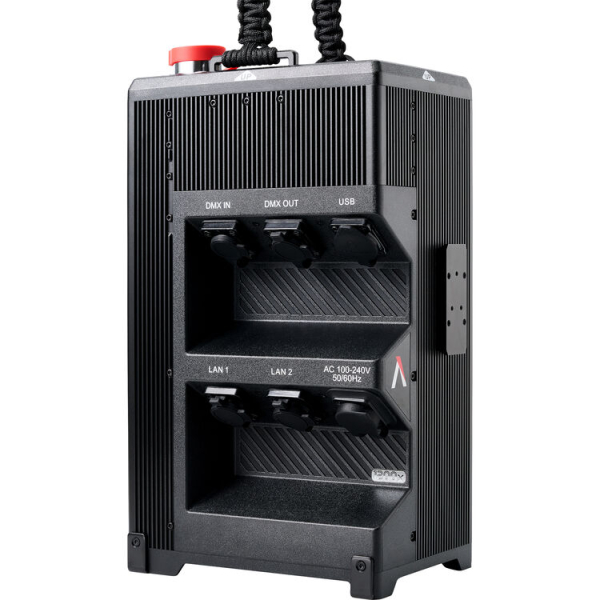

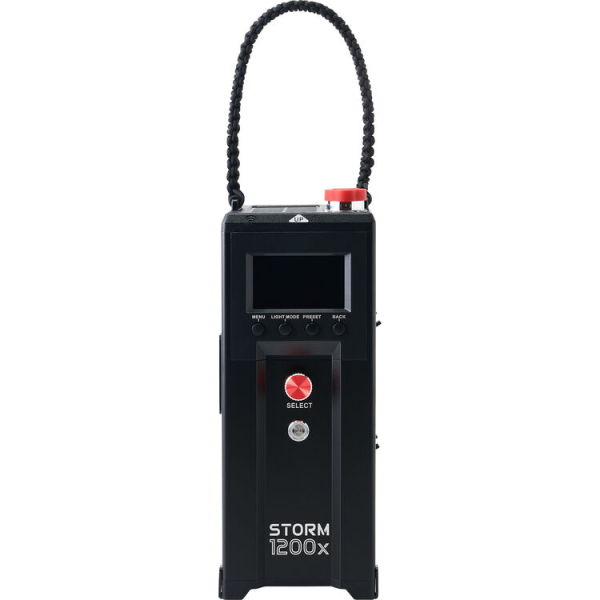

Power Supply/Controller

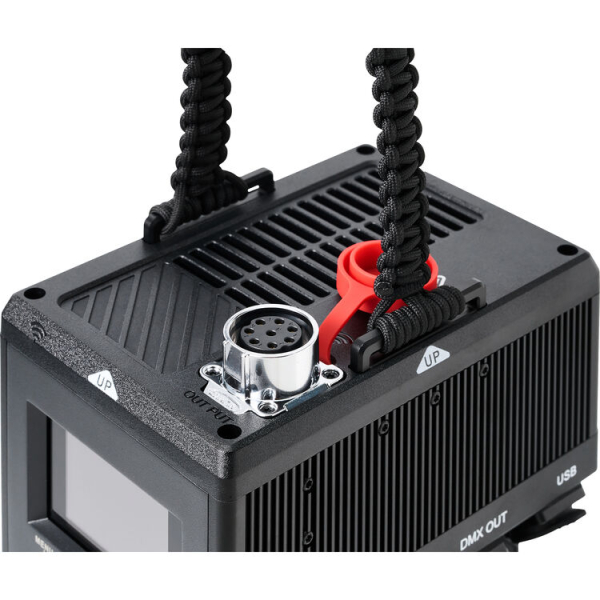

To Light Fixture: 1x Unspecified Power Output (48 VDC)

1x powerCON AC Power Input

1x XLR 5-Pin Male DMX Input

1x XLR 5-Pin Female DMX Output

2x RJ45 Network Input/Output

Input Power
100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable
1x Unspecified to Unspecified Cable (19.7′ / 6 m)

Power Pass-Thru
No

Power Consumption
1200 W

1550 W (Maximum)

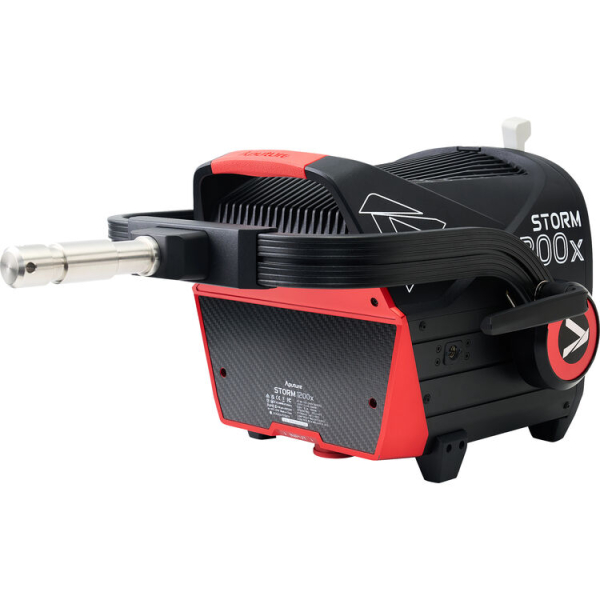

Mounting

Yoke Type
Manually-Operated Yoke

Fixture Mounting
1x 1-1/8″ Stud (Via Yoke Mount)

General

Display
No

Environmental Resistance
Weather-Resistant (IP65)

Operating Conditions
-4 to 113°F / -20 to 45°C

Storage Conditions
-40 to 176°F / -40 to 80°C

Dimensions
13.2 x 13.1 x 9.8″ / 33.6 x 33.4 x 25 cm (Fixture)

13.5 x 7.4 x 5.4″ / 34.4 x 18.9 x 13.6 cm (Power Supply/Controller)

Weight
20.9 lb / 9.5 kg (Fixture with Yoke)

13.05 lb / 5.92 kg (Power Supply/Controller)

Packaging Info

Package Weight
65.5 lb

Box Dimensions (LxWxH)
27.25 x 19.25 x 18″
