Aputure Nova P600c RGB LED Light Panel (Travel Kit)

Key Features

For Studio & Film/TV Production
Output: 17,520 Lux at 3.3′ (5600K)
2000 to 10,000K; RGB Color Control
31.6 x 18.96″ Panel, AC/DC Operation
CRI 95 | TLCI 95 | SS1 84 | CQS 95
On-Board, DMX512, Bluetooth App Control
Active Fan Cooling
With Control Box, Yoke, Mounting Clamp
Dimming: 0-100°, Plus/Minus Green Adj.
300+ Gel Presets, 19 Special Effects

The Nova P600c RGB LED Panel Travel Kit from Aputure combines the versatile, high-performance P600c panel with a heavy-duty rolling case, making it ready for worldwide travel.

Aputure Nova P600c RGB LED Light Panel
Brightness, flexibility, and control are key to the design of the Nova P600c RGB LED Light Panel from Aputure. This 2×1 LED soft light panel provides twice the brightness of the P300c with twice the number of light engines, producing a massive 17,520 lux at 3.3′ in 5600K CCT mode. It also features 19 lighting effects and a new control box with wired support for DMX512 and wireless support for LumenRadio CRMX and the Sidus Link smartphone app.

The Nova 600c provides the same professional features as the P300c such as an expansive color temperature of 2000 to 10,000K, an impressive CRI/TLCI rating of 95+, plus/minus green control, dimming from 0.1 to 100% without flicker or color shift. The HSI mode offers hue, saturation, and intensity adjustment, providing access to millions of custom colors. It also features a 300+ industry-standard gel library for even greater chromatic control, plus 19 special lighting effects that include cop car, lightning, paparazzi, candle, and fire. It also features a removable diffusion panel, maximum and constant output modes, and four user-programmable presets.

All of the adjustments can be made locally on the unit or remotely via the extendable control box, thanks to the P600c’s built-in DMX512 support, wireless CRMX, or with wireless control of all aspects of the light from a smartphone using the Sidus Link app. The P600c is ready for worldwide use due to its internal 100 to 240 VAC power supply, but it can also run on batteries when AC power is unavailable. It can mount onto a Junior pin using its built-in, rotating yoke.

Nova P600c Features

600W RGBWW 2×1 LED soft light panel

17,520 lux at 3.3′ in 5600K CCT mode; 2298 lux at 9.8′ in 6500K CCT mode

Two times brighter than the Nova P300c

CRI and TLCI 95+, SSI (D56): 74, SSI (Tungsten): 84

4-light engine zone control

Fully tunable CCT from 2000 to 10,000K

Fully tunable green-magenta adjustment (Full Plus/Minus Green)

Hue, saturation, and intensity (HSI) with CCT control

Control: Built-in LumenRadio CRMX, Sidus Link mobile app compatibility, 8/16-bit DMX512 5-pin input and output

Cable-free contact pin control box interface

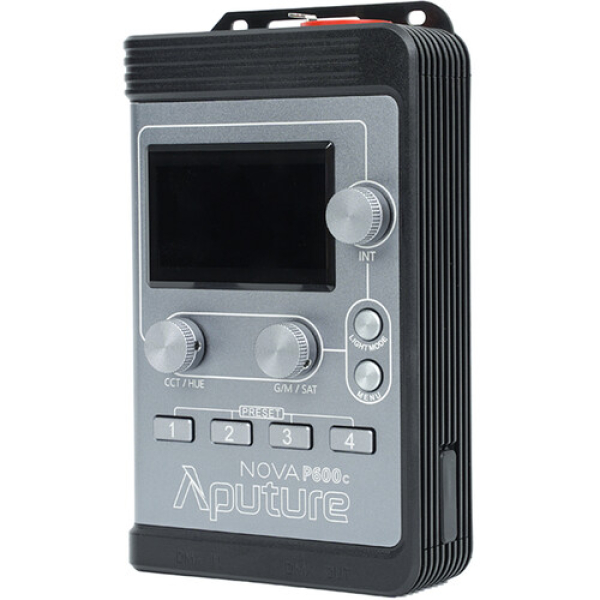

Extendable control box with lightning clamp

Internal multivoltage power supply with Neutrik powerCON TRUE1 TOP AC power cable

3-Pin XLR 48V/15A DC battery input

Head cable length is 9.8′ for flexibility and reach

Four user-programmable presets

Removable Diffusion Panel

Two output modes: Max and Constant

Lead-follow mode for quick workflow

Variety of built-in light source presets

Frequency selection to reduce flicker

Industry-standard X,Y (CIE 1931) color control

Colors within Rec.2020 color space: >90%

Industry-standard gel presets: 300+

19 Built-in lighting FX: fireworks, paparazzi, faulty bulb, lightning, TV, pulsing, strobe, explosion, club lights, candle, fire, welding, cop car, color chase, and party lights, color fade, color cycle, color gradient, and one color chase.

Stepless dimming from 0.1 to 100%

Curved dual disk-brake yoke with 360° rotation and Junior pin mount

Aputure Nova P600C Rolling Hard Case
The Nova P600c Rolling Hard Case from Aputure was specifically designed to store and transport the P600c LED panel. This rolling hard case features heavy-duty wheels and handles that make transportation a breeze. Robust, injection-molded polyethylene construction offers 360° protection. The interior has several layers of foam protection with separate cutouts for the fixture plus various accessories. The case will accommodate the LED panel with a control box, power cables, and a grid or barndoors.
Item Type
1x LED Array LED Light Panel

Included Storage Case
No

Photometrics
2700K:

1355 fc / 14,586 Lux at 3.3′ / 1 m

171 fc / 1850 Lux at 9.8′ / 3 m

67 fc / 725 Lux at 16.4′ / 5 m

3200K:

1432 fc / 15,420 Lux at 3.3′ / 1 m

179 fc / 1936 Lux at 9.8′ / 3 m

69 fc / 746 Lux at 16.4′ / 5 m

4300K:

1443 fc / 15,533 Lux at 3.3′ / 1 m

180 fc / 1945 Lux at 9.8′ / 3 m

70 fc / 758 Lux at 16.4′ / 5 m

5600K:

1627 fc / 17,520 Lux at 3.3′ / 1 m

201 fc / 2167 Lux at 9.8′ / 3 m

78 fc / 847 Lux at 16.4′ / 5 m

6500K:

1704 fc / 18,346 Lux at 3.3′ / 1 m

213 fc / 2298 Lux at 9.8′ / 3 m

80 fc / 867 Lux at 16.4′ / 5 m

Color Temperature
2000 to 10,000K

Color Modes
RGB, Daylight, Tungsten

Color Accuracy Standard
CRI 95

TLCI 95

SSI 84

CQS 95

Dimming
Controller Included (Continuous)

• 0.1 to 100%

Front Accessory Mount
Proprietary

Wireless Remote Control Type
Bluetooth

Wireless CRMX

Power Source
AC Power (Cable Included)

Battery (Not Included)

Battery
1x Battery Power Station, 48 VDC (Not Included)

Input Power
48 VDC at 15 A

100 to 240 VAC, 50 / 60 Hz

Power Consumption
720 W

Fixture Mounting
1x 1-1/8″ Stud (Via Yoke Mount)

Light Fixture

Item Type
1x LED Array LED Light Panel

Included Filters
Diffusion

Included Storage Case
No

Photometrics
2700K:

1355 fc / 14,586 Lux at 3.3′ / 1 m

171 fc / 1850 Lux at 9.8′ / 3 m

67 fc / 725 Lux at 16.4′ / 5 m

3200K:

1432 fc / 15,420 Lux at 3.3′ / 1 m

179 fc / 1936 Lux at 9.8′ / 3 m

69 fc / 746 Lux at 16.4′ / 5 m

4300K:

1443 fc / 15,533 Lux at 3.3′ / 1 m

180 fc / 1945 Lux at 9.8′ / 3 m

70 fc / 758 Lux at 16.4′ / 5 m

5600K:

1627 fc / 17,520 Lux at 3.3′ / 1 m

201 fc / 2167 Lux at 9.8′ / 3 m

78 fc / 847 Lux at 16.4′ / 5 m

6500K:

1704 fc / 18,346 Lux at 3.3′ / 1 m

213 fc / 2298 Lux at 9.8′ / 3 m

80 fc / 867 Lux at 16.4′ / 5 m

Color Temperature
2000 to 10,000K

Color Modes
RGB, Daylight, Tungsten

Color Accuracy Standard
CRI 95

TLCI 95

SSI 84

CQS 95

Dimming
Controller Included (Continuous)

• 0.1 to 100%

Cooling System
Fan

Built-In Flash
No

Pixel Zones
4

Preprogrammed Effects
Yes

Umbrella Mount
No

Front Accessory Mount
Proprietary

Connectivity

Wireless Remote Control Type
Bluetooth

Wireless CRMX

Mobile App Compatible
Yes: Android & iOS

App Name: Sidius

Functionality: Remote Control

Power & I/O

Power Source
AC Power (Cable Included)

Battery (Not Included)

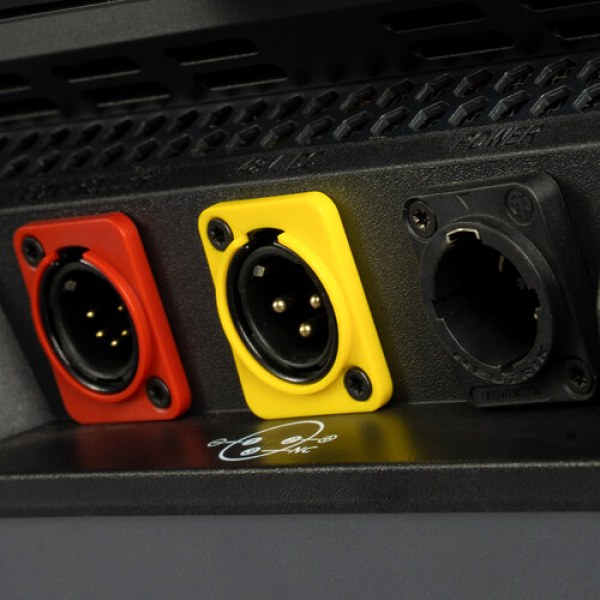

Inputs/Outputs
1x XLR 5-Pin DMX Input

1x XLR 3-Pin Battery Input

1x powerCON TRUE1 AC Power Input

Battery
1x Battery Power Station, 48 VDC (Not Included)

Input Power
48 VDC at 15 A

100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable
1x USA Type-A/B to powerCON TRUE1 TOP Cable (19.7′ / 6 m)

Inline Switch
No

Power Pass-Thru
No

Power Consumption
720 W

Mounting

Yoke Type
Manually-Operated Yoke

Fixture Mounting
1x 1-1/8″ Stud (Via Yoke Mount)

General

Display
LCD

Environmental Resistance
No

Operating Conditions
-4 to 113°F / -20 to 45°C

Certifications
CE, FCC

Dimensions
31.6 x 18.96 x 7.07″ / 80.2 x 48.15 x 17.96 cm (Fixture with Yoke)

6.2 x 3.8 x 1.8″ / 15.75 x 9.66 x 4.58 cm (Power Supply/Controller)

Weight
30.29 lb / 13.74 kg (Fixture)

0.9 lb / 430 g (Power Supply/Controller)

Packaging Info

Package Weight
42 lb

Box Dimensions (LxWxH)
34.75 x 23.5 x 9.4″
