Aputure LS 600d Daylight LED Monolight (V-Mount)

Key Features

For Film, Broadcast and Video Production
Output: 98,500 Lux at 3.3′ w/ Reflector
5600K CCT
AC or Battery Power
Onboard, Wireless, DMX & App Control
CRI 96 | TLCI 96 | CQS 94 | SSI 72
Active Cooling
Bowens S Accessory Mount
8 Preset Special Effects
Includes Reflector, Clamp & Rolling Bag

Designed for cinematographers, videographers, and photographers alike, the Aputure LS 600d Daylight LED Monolight provides convenient access to intense light output and does not require constant bulb changes like HMI or tungsten lamps. This offers an easy plug-and-play solution for users who need simple and intuitive controls with solid output. Complementing its high intensity, eight built-in lighting effects let you choose between paparazzi, fireworks, lightning, faulty bulb, TV, pulsing, strobe, and explosion. Additionally, the light offers 0-100% brightness control in 1% increments for maximum versatility, making it a perfect light for any demanding lighting situation you may encounter.

Intense Light Output

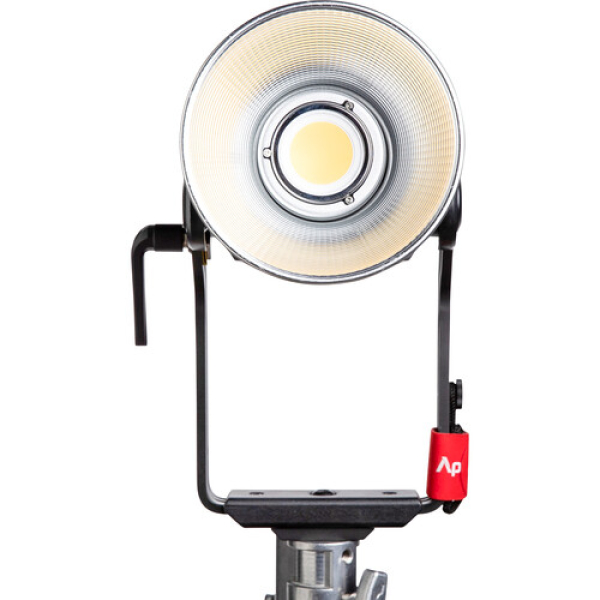

Utilizing the same light source as its professional predecessor, the LS 600d is one of the brightest point source LEDs available. Thanks to its immensely powerful 600W COB LED, this light outputs an incredible 98,500 lux at 3.3′ with the included Hyper Reflector, 8,500+ lux at 9.8′ with the included Hyper Reflector, or up to 29,300+ lux at 9.8′ with an optional F10 Fresnel.
Providing a maximum power draw of only 720W, this light approaches the brightness of a 1200W HMI at only a fraction of its total energy consumption.

Operation and Compatibility

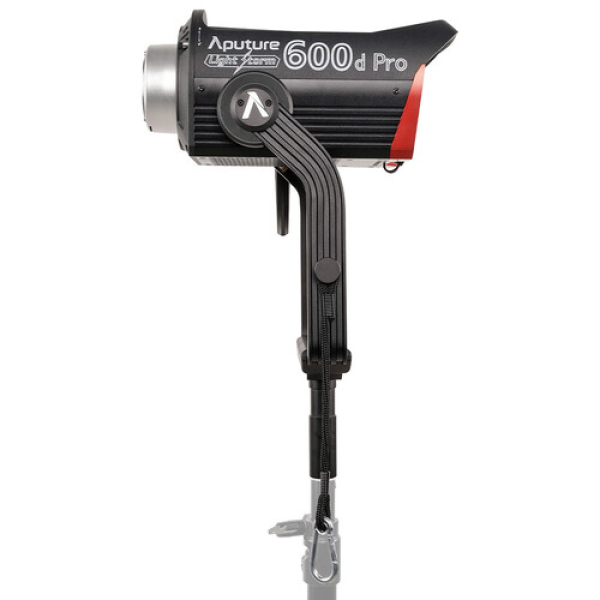

The LS 600d features the same power as the LS 600d Pro while streamlining the control box and feature set for users who don’t require professional-level LumenRadio CRMX, Art-net compatibility, extreme weather-resistance, and battery charging functionality.

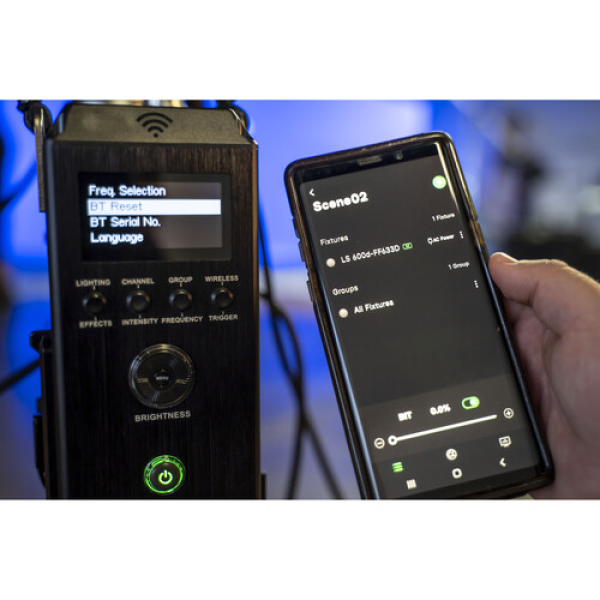

Compatible with the Sidus Link Bluetooth app, which allows wireless adjustments of all the light’s functions as well as effects.
Integrates into onset workflows via both the Sidus Link Bluetooth app or DMX512 protocols, giving creators a powerful fixture that seamlessly integrates into their existing ecosystems with smooth dimming control and without color shifts or the need to use scrims to decrease output.
Perfect for new users who work in studios and on-location, the LS 600d lets you start with a foundation of one light and quickly change between hard and soft qualities.

Lighting Accessories and Modifiers

As a member of the Light Storm family, the LS 600d features an integrated Bowens S-mount for easily attaching a wide variety of accessories and modifiers, ranging from the F10 Fresnel for intense brightness to the Light Dome 150 for spectacular softness.

Universal Power and Battery Options

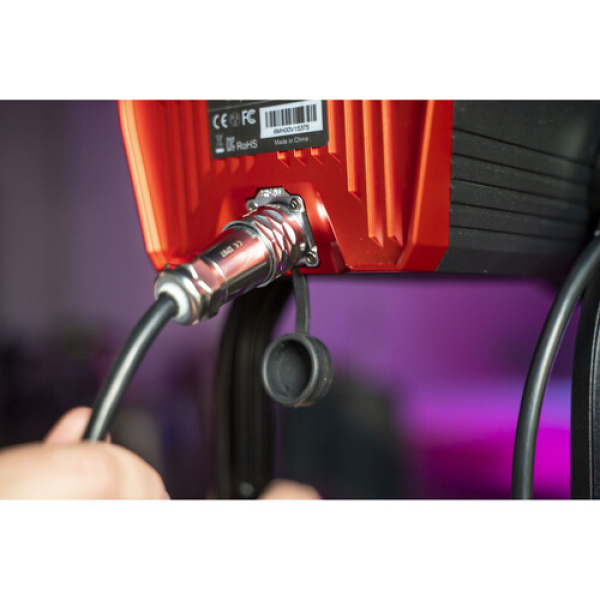

Ready for worldwide use via its included 100 to 240V power supply, the LS 600d control box also provides dual battery plates for optional V-Mount batteries, which together will power the light at half of its maximum output. The control box also accepts 48V DC power via a 3-pin XLR for external power stations.

Miscellaneous Features

Multiple control methods including 2.4 GHz remote, Sidus Link Bluetooth app control, and 5-pin DMX512 in and out.

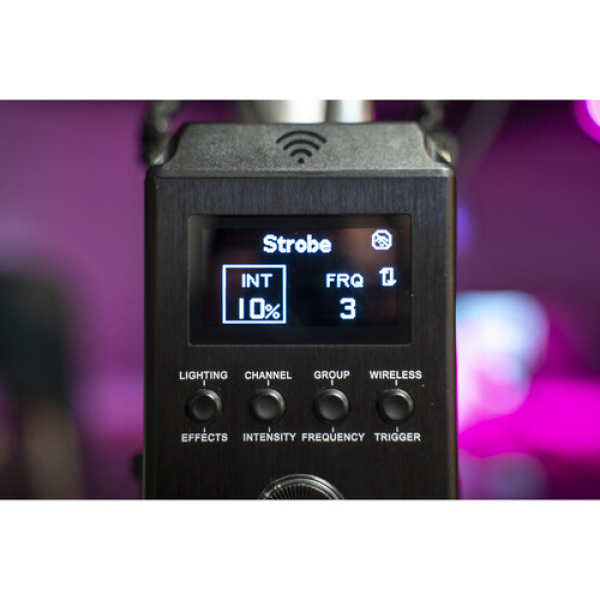

8 built-in lighting effects for paparazzi, fireworks, lightning, faulty bulb, TV, pulsing, strobe, and explosion.
4 dimming curves for electrical parameter output include linear, exponential, log, and S-curve.
Curved, handbrake-locking yoke with 360° rotation.
Dual junior/baby pin for easy mounting.
Built-in lightning clamp quick release plate.
Firmware updateable
Item Type
1x LED Monolight

Included Storage Case
No

Photometrics
105° at 5600K:

2057 fc / 22,150 Lux at 3.3′ / 1 m

241 fc / 2600 Lux at 9.8′ / 3 m

94 fc / 1020 Lux at 16.4′ / 5 m

55° at 5600K:

9150 fc / 98,500 Lux at 3.3′ / 1 m (with Reflector)

789 fc / 8500 Lux at 9.8′ / 3 m (with Reflector)

278 fc / 3000 Lux at 16.4′ / 5 m (with Reflector)

Color Temperature
5600K +/- 200K (with 112K Shift over Lifetime)

Color Accuracy Standard
CRI 96

TLCI 96

CQS 94

SSI 72

TM-30 Rf 92

TM-30 Rg 102

Dimming
App-Controlled / Controller Included / DMX (Continuous)

• 0 to 100%

Front Accessory Mount
Bowens S

Wireless Remote Control Type
Bluetooth

Radio/RF

Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)

Battery (Not Included) *Requires Power Supply/Controller (Included)

Battery Plate Type
2x V-Mount (Built-In)

Battery
2x Rechargeable (Not Included)

Input Power
48 VDC at 15 A

100 to 240 VAC, 50 / 60 Hz

Power Consumption
720 W

Fixture Mounting
1x 1-1/8″ Stud with 5/8″ Receiver (Via Yoke Mount)

Light Fixture

Item Type
1x LED Monolight

Included Storage Case
No

Lumens
62,187

Photometrics
105° at 5600K:

2057 fc / 22,150 Lux at 3.3′ / 1 m

241 fc / 2600 Lux at 9.8′ / 3 m

94 fc / 1020 Lux at 16.4′ / 5 m

55° at 5600K:

9150 fc / 98,500 Lux at 3.3′ / 1 m (with Reflector)

789 fc / 8500 Lux at 9.8′ / 3 m (with Reflector)

278 fc / 3000 Lux at 16.4′ / 5 m (with Reflector)

Color Temperature
5600K +/- 200K (with 112K Shift over Lifetime)

Color Accuracy Standard
CRI 96

TLCI 96

CQS 94

SSI 72

TM-30 Rf 92

TM-30 Rg 102

Dimming
App-Controlled / Controller Included / DMX (Continuous)

• 0 to 100%

Cooling System
Fan

Expected Lamp Life
50,000 Hours (L70)

Beam Angle
105° Unmodified

55° with Included Reflector

Built-In Flash
No

Preprogrammed Effects
Yes

Umbrella Mount
No

Front Accessory Mount
Bowens S

Connectivity

Wireless Remote Control Type
Bluetooth

Radio/RF

Mobile App Compatible
Yes: Android & iOS

App Name: Sidus Link

Functionality: Firmware Update, Remote Control

Wireless Frequency
2.4 GHz

Wireless Range
262.5′ / 80 m (Bluetooth)

328.1′ / 100 m (Radio/RF)

Power & I/O

Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)

Battery (Not Included) *Requires Power Supply/Controller (Included)

Inputs/Outputs
Light Fixture

1x Proprietary Power Input

Power Supply/Controller

1x powerCON Power Input

1x XLR 3-Pin Power Input

1x Proprietary Power Output

1x XLR 5-Pin DMX Input

1x XLR 5-Pin DMX Output

Battery Plate Type
2x V-Mount (Built-In)

Battery
2x Rechargeable (Not Included)

Input Power
48 VDC at 15 A

100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable
1x USA Type-A/B to powerCON Cable (19.7′ / 6 m)

1x Proprietary to Proprietary Cable (9.8′ / 3 m)

Inline Switch
No

Power Pass-Thru
No

Power Consumption
720 W

Mounting

Yoke Type
Manually-Operated Yoke (360° Tilt)

Fixture Mounting
1x 1-1/8″ Stud with 5/8″ Receiver (Via Yoke Mount)

General

Display
OLED

Environmental Resistance
No

Operating Conditions
-4 to 113°F / -20 to 45°C

Certifications
BIS, CE, FCC, PSE, RoHS

Materials
Metal (Housing)

Dimensions
12.1 x 6.1 x 5.9″ / 30.7 x 15.5 x 15 cm (Fixture)

18 x 12.1 x 9.8″ / 45.7 x 30.7 x 24.9 cm (Fixture with Yoke)

Weight
10.34 lb / 4.69 kg

Packaging Info

Package Weight
37 lb

Box Dimensions (LxWxH)
23.75 x 16.5 x 14.75″
