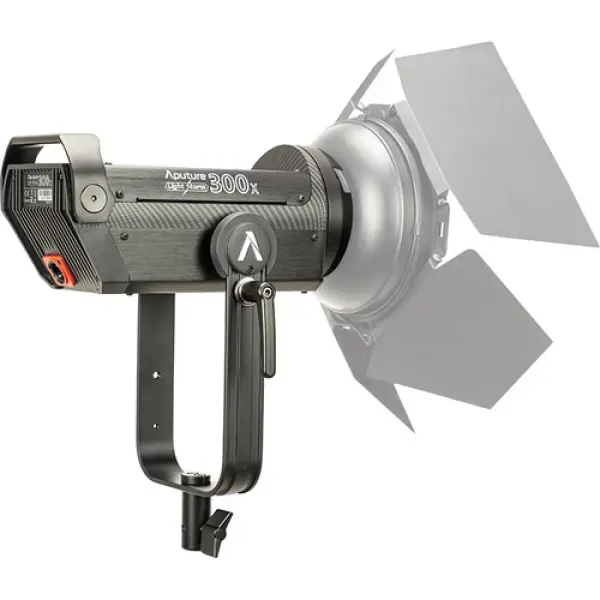

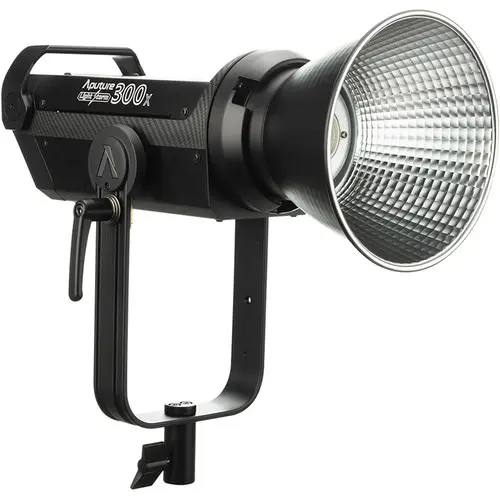

Aputure LS 300x Bi-Color LED Monolight (V-Mount)

Key Features

For Film, Broadcast and Video Production
Output: 20,500 Lux at 3.3′ w/ Reflector
2700-6500K CCT
AC or Battery Power
Onboard, Wireless, DMX & App Control
CRI 96 | TLCI 96 | CQS 95 | SSI 85
Active Cooling
Bowens S Accessory Mount
9 Preset Special Effects

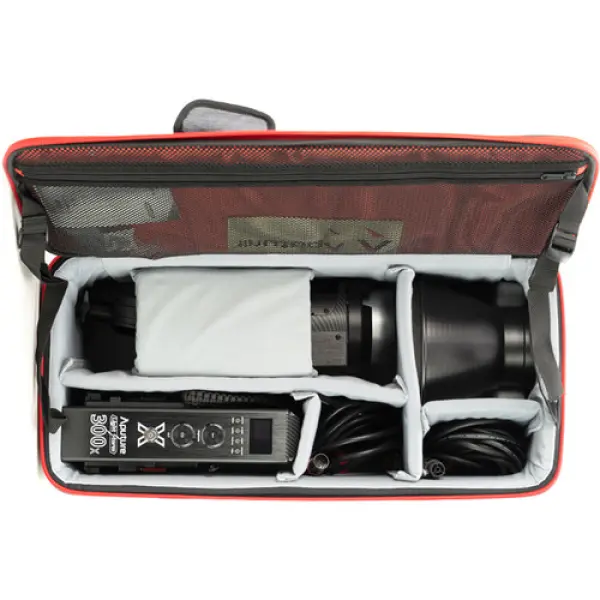

Includes Remote, Reflector, Clamp & Bag

The LS 300x Bi-Color LED Monolight from Aputure is the first Aputure light to go beyond traditional bi-color lighting by utilizing the expanded vari-white CCT range of 2700-6500K, providing warmer tungsten tones and cooler than daylight whites. The brilliant light can be dimmed from a potent main light to a subtle, nuanced fill light, flicker free across the dimming range. It emits up to 20,500 lux at 3.3′ with its included 55° Hyper Reflector. The Controller Box attached to the LS 300x head with a 9.8′ head extension cable, so adjusting settings is effortless regardless of where the light is set. The self-regulating, multi-voltage controller also operates using single or dual V-mount batteries, suitable for lighting in remote locations.

Robust Bi-Color Performance

Combining the latest optical color-blending technology with Aputure’s dual-color LED chipset provides an unprecedented flexibility from a single LED fixture. A specially-designed color-blending optical element in front of the chipset combines the LED output into a single cohesive point light source. The highly-efficient light output renders at CRI 96, TLCI 96, plus higher than industry standard SS1 85, and D55-SSI 74 ratings. This level of efficiency means colors and skin tones will be reproduced with an extremely-high degree of accuracy.

Local Control, DMX, 2.4 GHz Wireless, and Bluetooth Remote Control Options

Intuitive local controls and a bright LCD display on the Controller Box allow precise and repeatable setups locally. In addition, the output may be controlled using the included 2.4 GHz wireless remote, or the light may be integrated into a DMX network via the 5-pin XLR in/out ports. Also, thanks to Aputure’s integrated Sidus Mesh network chipset, all the 300x’s functions may be controlled by the Sidus Link app, free to download for iOS and Android portable devices. The app also allows saving presets, adjusting/triggering lighting effects, luminance, and CCT, as well as installation of firmware updates, all from your smartphone or tablet.

Dual Output Modes

Constant Output Mode allows precision CCT adjustment while maintaining constant luminance, and even shift color temperature seamlessly during a scene. Max Output Mode will maximize CCT and dimming levels within the 4000-5500K range.

Bowens S-Mount Versatility

The integrated Bowens-S mount allows using an almost limitless number of available modifiers to narrow, diffuse, or otherwise sculpt the light to suit any application or creative vision.

Four Available Dimming Modes

Linear
Exponential
Logarithmic
S-Curve

5 Available Common CCT Presets

2700K
3200K
4200K
5500K
6500K

Nine Customizable Built-In Lighting Effects

Paparazzi
Fireworks
Lightning
Faulty Bulb
TV
Pulsing
Strobe
Explosion
Fire
Item Type
1x LED Monolight

Included Light Modifier
1x Reflector

Included Storage Case
Yes

Photometrics
105° at 3200K:

473 fc / 5100 Lux at 3.3′ / 1 m

53 fc / 580 Lux at 9.8′ / 3 m

20 fc / 220 Lux at 16.4′ / 5 m

105° at 5600K:

585 fc / 6300 Lux at 3.3′ / 1 m

65 fc / 700 Lux at 9.8′ / 3 m

23 fc / 250 Lux at 16.4′ / 5 m

3200K:

1504 fc / 16,200 Lux at 3.3′ / 1 m (with Reflector)

120 fc / 1300 Lux at 9.8′ / 3 m (with Reflector)

41 fc / 450 Lux at 16.4′ / 5 m (with Reflector)

5600K:

1904 fc / 20,500 Lux at 3.3′ / 1 m (with Reflector)

157 fc / 1700 Lux at 9.8′ / 3 m (with Reflector)

51 fc / 550 Lux at 16.4′ / 5 m (with Reflector)

Color Temperature
2700 to 6500K

Color Modes
Daylight, Tungsten

Color Accuracy Standard
CRI 96

TLCI 96

CQS 95

Dimming
App-Controlled / Controller Included / DMX (Continuous)

• 0 to 100%

Front Accessory Mount
Bowens S

Wireless Remote Control Type
Bluetooth

Radio/RF *Remote Included

Power Source
AC Power (Cable Included)

Battery (Not Included)

Battery Plate Type
2x V-Mount (Built-In)

Battery
2x V-Mount Rechargeable, 14.4 VDC (Not Included)

Input Power
100 to 240 VAC, 50 / 60 Hz

Power Consumption
350 W

Fixture Mounting
1x 5/8″ Receiver (Via Yoke Mount)

Light Fixture

Item Type
1x LED Monolight

Included Light Modifier
1x Reflector

Included Storage Case
Yes

Lumens
56,000

Photometrics
105° at 3200K:

473 fc / 5100 Lux at 3.3′ / 1 m

53 fc / 580 Lux at 9.8′ / 3 m

20 fc / 220 Lux at 16.4′ / 5 m

105° at 5600K:

585 fc / 6300 Lux at 3.3′ / 1 m

65 fc / 700 Lux at 9.8′ / 3 m

23 fc / 250 Lux at 16.4′ / 5 m

3200K:

1504 fc / 16,200 Lux at 3.3′ / 1 m (with Reflector)

120 fc / 1300 Lux at 9.8′ / 3 m (with Reflector)

41 fc / 450 Lux at 16.4′ / 5 m (with Reflector)

5600K:

1904 fc / 20,500 Lux at 3.3′ / 1 m (with Reflector)

157 fc / 1700 Lux at 9.8′ / 3 m (with Reflector)

51 fc / 550 Lux at 16.4′ / 5 m (with Reflector)

Color Temperature
2700 to 6500K

Color Modes
Daylight, Tungsten

Color Accuracy Standard
CRI 96

TLCI 96

CQS 95

Dimming
App-Controlled / Controller Included / DMX (Continuous)

• 0 to 100%

Cooling System
Fan

Beam Angle
105°

Built-In Flash
No

Preprogrammed Effects
Yes

Umbrella Mount
No

Front Accessory Mount
Bowens S

Connectivity

Wireless Remote Control Type
Bluetooth

Radio/RF *Remote Included

Mobile App Compatible
Yes: Android & iOS

App Name: Sidus Link

Functionality: Remote Control

Wireless Channels
3

Wireless Groups
4

Wireless Frequency
2.4 GHz

Wireless Range
328.1′ / 100 m

Power & I/O

Power Source
AC Power (Cable Included)

Battery (Not Included)

Inputs/Outputs
Light Fixture

1x XLR 5-Pin Power Input

Power Supply/Controller

1x powerCON AC Power Input

1x XLR 5-Pin Power Output

1x XLR 5-Pin DMX Input

1x XLR 5-Pin DMX Output

Battery Plate Type
2x V-Mount (Built-In)

Battery
2x V-Mount Rechargeable, 14.4 VDC (Not Included)

Input Power
100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable
1x USA Type-A/B to powerCON Cable (19.7′ / 6 m)

1x XLR 5-Pin Male to XLR 5-Pin Female Cable (9.8′ / 3 m)

Inline Switch
No

Power Pass-Thru
No

Power Consumption
350 W

Mounting

Yoke Type
Manually-Operated Yoke (180° Tilt)

Fixture Mounting
1x 5/8″ Receiver (Via Yoke Mount)

General

Display
LCD

Environmental Resistance
No

Certifications
CE, CE RED, FCC, KC, PSE, RoHS, cTUVus

Materials
Aluminum (Housing)

Dimensions
11 x 5 x 3.8″ / 27.9 x 12.7 x 9.7 cm (Power Supply/Controller)

13.6 x 11.7 x 8.5″ / 34.5 x 29.8 x 21.6 cm (Fixture)

Weight
25.13 lb / 11.4 kg

Packaging Info

Package Weight
25 lb

Box Dimensions (LxWxH)
24.6 x 11.9 x 10.8″
