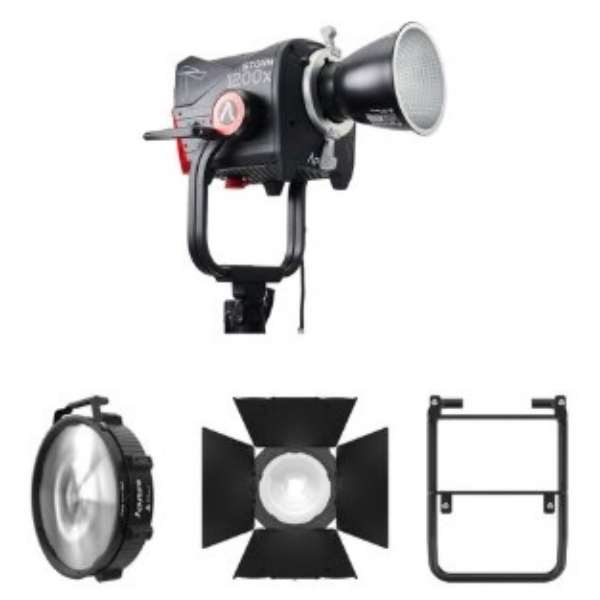

Aputure 1200x + CF12 Fresnel + CF12 Barn Doors + Skid

Key Features

STORM 1200x Bi-Color LED Monolight
STORM 1000c/1200x Skid Flat Support
CF12 15-45° Compact Bowens Fresnel
8-Leaf CF12 Barndoors

Aputure STORM 1200x Tunable White LED Monolight

Full-Spectrum Power and Functionality

Pioneering a new approach to conventional white-point lighting, Aputure’s latest point-source workhorse, the STORM 1200x Tunable White LED Monolight, matches a powerful and innovative full-spectrum chipset with advanced dimming technology, professional color accuracy, a widely adaptable Bowens mount, and a robust, IP65-rated construction for high-end set work under any circumstance.

The BLAIR Chip Project

In its new STORM family of LED monolights, of which the 1200x is the first, Aputure is debuting its breakthrough BLAIR chipset that features blue, lime, amber, indigo, and red LEDs to deliver higher brightness levels and color accuracy levels. Rated 95 for both CRI and TLCI standards, the light also scores an 87 SSI rating at 3200 and 5600K color temperatures, and the multicolor diodes improve the light’s color-matching abilities. The full CCT range of 2500 to 10,000K is enhanced with green-magenta color correction for advanced white-point control, and the unit’s daylight 5600K output reaches 202,500 lux at 3.3′ when used with the included 45° reflector.

Advanced Dimming and Connectivity

The STORM 1200x comes with a controller that enables advanced dimming, control, and functionality. Stepless dimming is available from .1 to 100%, and flicker-free, color-accurate operation is possible even at the light’s lowest output. Wired and wireless options offer users a variety of control protocols, including DMX, LumenRadio CRMX, Art-Net, and sACN Ethernet, and app control via Bluetooth and the Sidus Link and Sidus Link Pro apps to integrate the light into professional lighting workflows.

Build and Performance

The light’s rugged construction is IP65 rated for dust and weather resistance, making it suitable for use in even the most demanding environments. The light features a Bowens S mount, allowing the STORM 1200x the broad suite of Bowens-compatible modifiers with easy coupling and secure locking.

UPC: 850065294049

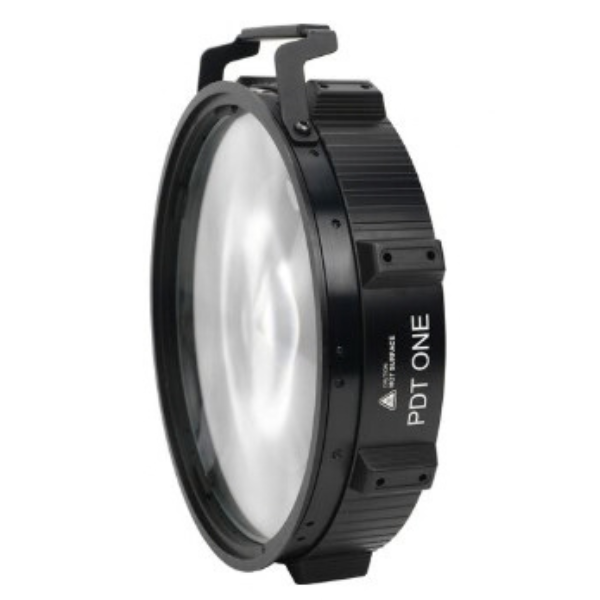

Aputure CF12 Fresnel for STORM 1000c and 1200x
Designed for the STORM 1000c and 1200x light fixture, the CF12 Fresnel from Aputure intensifies the light output by up to nine times, producing up to 60,000 lux at 3200K. It focuses the light’s beam spread from a tight 15° to a 45° medium flood with smooth falloff from the center to the edge. Compatible with select other Aputure lights and CF12 barndoors, the CF12 Fresnel has a Bowens ProLock mount and comes with a carrying case that can also fit the separately available barndoors.

Compatible Lights

Aputure

STORM 1000c
STORM 1200x
LS 1200d Pro
LS 600c Pro II
LS 600c Pro

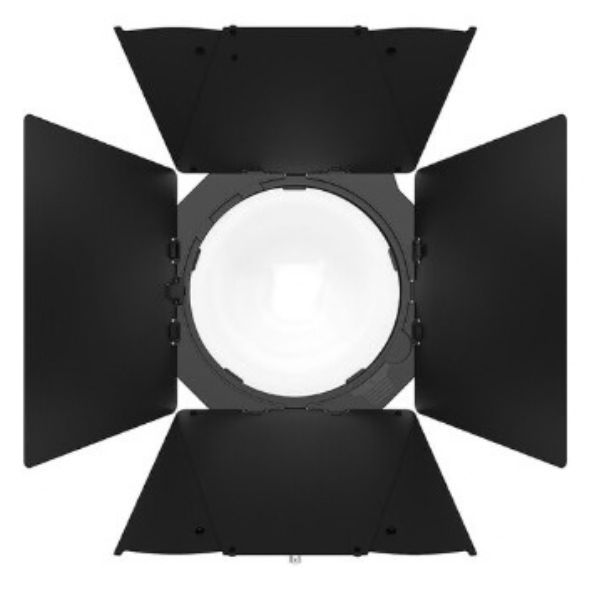

Aputure CF12 Barndoors for CF12 Fresnel
The CF12 Barndoors for CF12 Fresnel from Aputure are specifically designed for the CF12 Fresnel that fits on STORM 1200x and 1000c lights. These eight-leaf barndoors enable you to quickly shape and/or cut the light output. They also have a holder for a 13″ metal scrim.

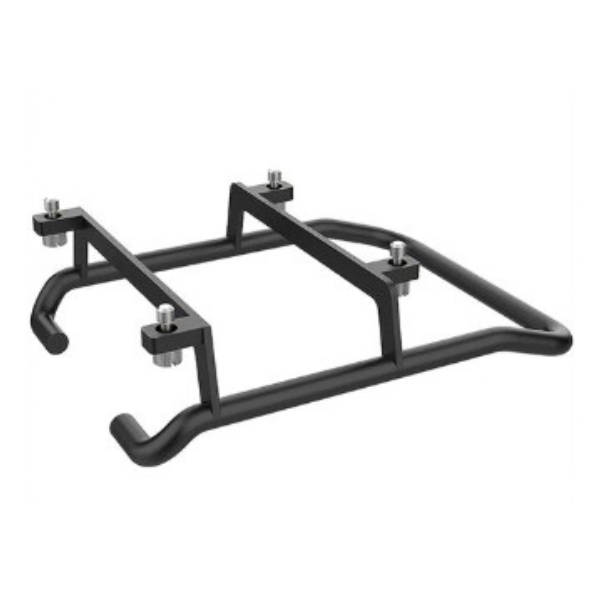

Aputure Skid for STORM 1200x/1000c

Sturdy Ground Support

Save time and gain peace of mind using the STORM 1000c/1200x Skid from Aputure. Not only does this stainless steel support let you place your light on the ground without fear of it tipping over, but it does so while accommodating its head cable and other components. This frame will also come in handy at rental houses or on location for use on shelves and carts.

Use with Assembled Lights

The skid accommodates a CF12 Fresnel lens and CF12 barndoors.
A rear cutout provides clearance for the light’s head cable.

Compatibility

Aputure STORM 1200x
Aputure STORM 1000c
Aputure STORM 1200x Tunable White LED Monolight

Key Specs

Item Type
1x COB LED Monolight

Included Light Modifier
1x Reflector

Included Storage Case
Yes

Photometrics at 3.3′ / 1 m
3200K: 6998 fc / 75,330 Lux (Unmodified)

45° at 3200K: 16,303 fc / 175,500 Lux (with Reflector)

5600K: 7098 fc / 76,410 Lux (Unmodified)

45° at 5600K: 18,812 fc / 202,500 Lux (with Reflector)

Color Temperature
10,000 to 2500K

Color Modes
Daylight, Tungsten

Color Accuracy Standard
CRI 95 at 3000K

TLCI 95 at 3200K

CQS 96

SSI 87 at 3200K

SSI 87 at 5600K

TM-30 Rf 95

TM-30 Rg 100

Dimming
App-Controlled / Controller Included / DMX / RDM (Continuous)

• 0.1 to 100%

Front Accessory Mount
Bowens S

Wireless Remote Control Type
Bluetooth

CRMX (TimoTwo)

Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)

Input Power
100 to 240 VAC, 50 / 60 Hz

Power Consumption
1200 W

1550 W (Maximum)

Fixture Mounting
1x 1-1/8″ Stud (Via Yoke Mount)

Light Fixture

Item Type
1x COB LED Monolight

Included Light Modifier
1x Reflector

Included Storage Case
Yes

Photometrics
3200K:

6998 fc / 75,330 Lux at 3.3′ / 1 m (Unmodified)*

777 fc / 8370 Lux at 9.8′ / 3 m (Unmodified)

294 fc / 3170 Lux at 16.4′ / 5 m (Unmodified)

45° at 3200K:

16,303 fc / 175,500 Lux at 3.3′ / 1 m (with Reflector)*

1811 fc / 19,500 Lux at 9.8′ / 3 m (with Reflector)

641 fc / 6910 Lux at 16.4′ / 5 m (with Reflector)

5600K:

7098 fc / 76,410 Lux at 3.3′ / 1 m (Unmodified)*

788 fc / 8490 Lux at 9.8′ / 3 m (Unmodified)

300 fc / 3230 Lux at 16.4′ / 5 m (Unmodified)

45° at 5600K:

18,812 fc / 202,500 Lux at 3.3′ / 1 m (with Reflector)*

2090 fc / 22,500 Lux at 9.8′ / 3 m (with Reflector)

656 fc / 7070 Lux at 16.4′ / 5 m (with Reflector)

*Standardized Measurement Calculated Internally Based on Closest Distance

Color Temperature
10,000 to 2500K (in CCT Mode)

Color Modes
Daylight, Tungsten

Color Accuracy Standard
CRI 95 at 3000K

TLCI 95 at 3200K

CQS 96

SSI 87 at 3200K

SSI 87 at 5600K

TM-30 Rf 95

TM-30 Rg 100

Dimming
App-Controlled / Controller Included / DMX / RDM (Continuous)

• 0.1 to 100%

Cooling System
Fan

Beam Angle
45° with Included Reflector

Built-In Flash
No

Preprogrammed Effects
Yes

Umbrella Mount
No

Front Accessory Mount
Bowens S

Connectivity

Wireless Remote Control Type
Bluetooth

CRMX (TimoTwo)

Mobile App Compatible
Yes: Android & iOS

App Name: Sidus Link Pro

Functionality: Remote Control

Wireless Range
328.1′ / 100 m

Power & I/O

Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)

Inputs/Outputs
Light Fixture

To Power Supply/Controller: 1x Unspecified Power Input

Power Supply/Controller

To Light Fixture: 1x Unspecified Power Output (48 VDC)

1x powerCON AC Power Input

1x XLR 5-Pin Male DMX Input

1x XLR 5-Pin Female DMX Output

2x RJ45 Network Input/Output

Input Power
100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable
1x Unspecified to Unspecified Cable (19.7′ / 6 m)

Power Pass-Thru
No

Power Consumption
1200 W

1550 W (Maximum)

Mounting

Yoke Type
Manually-Operated Yoke

Fixture Mounting
1x 1-1/8″ Stud (Via Yoke Mount)

General

Display
No

Environmental Resistance
Weather-Resistant (IP65)

Operating Conditions
-4 to 113°F / -20 to 45°C

Storage Conditions
-40 to 176°F / -40 to 80°C

Dimensions
13.2 x 13.1 x 9.8″ / 33.6 x 33.4 x 25 cm (Fixture)

13.5 x 7.4 x 5.4″ / 34.4 x 18.9 x 13.6 cm (Power Supply/Controller)

Weight
20.9 lb / 9.5 kg (Fixture with Yoke)

13.05 lb / 5.92 kg (Power Supply/Controller)

Packaging Info

Package Weight
65.5 lb

Box Dimensions (LxWxH)
27.25 x 19.25 x 18″
