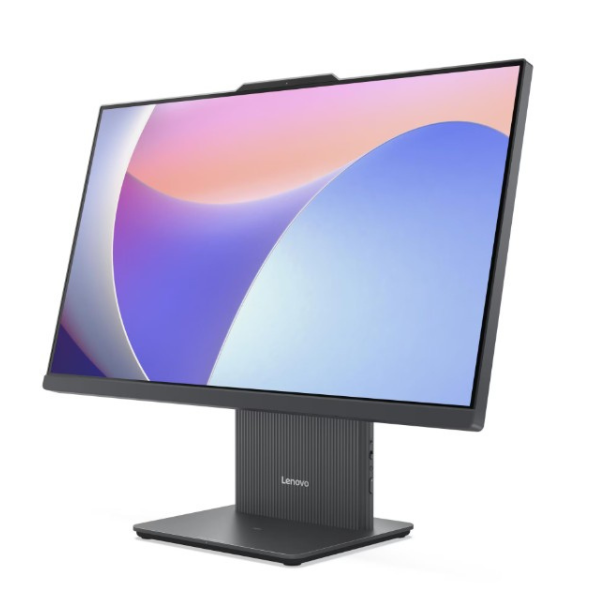

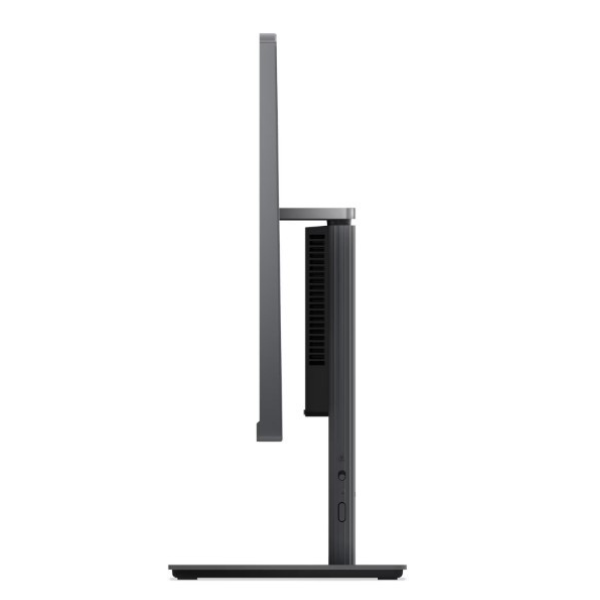

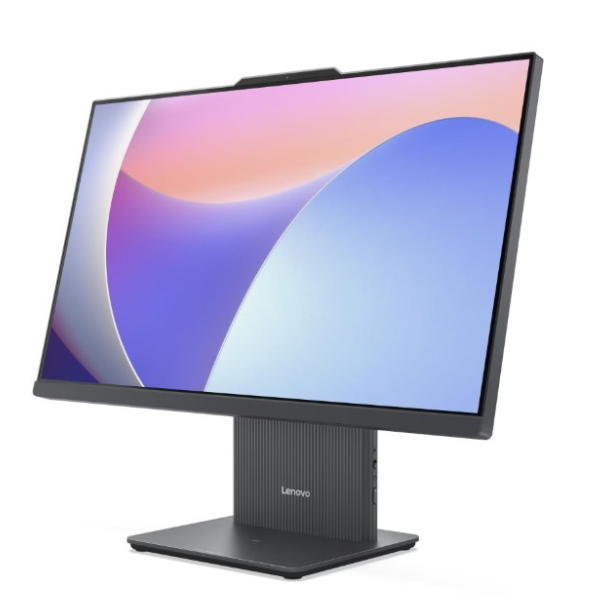

Lenovo IdeaCentre AIO i5-13420H Processor

Key Features and Specifications

Model: Lenovo IdeaCentre All In One Desktop PC (F0HN00UYLK)

Processor: Intel Core™ i5-13420H, 8C (4P + 4E) / 12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel® Smart Cache

Graphic: Integrated Intel® UHD Graphics

Memory: 1x 8GB SODIMM DDR5-5200

Display: 23.8″ FHD (1920×1080) IPS Anti-glare 250nits, 100Hz, 99% sRGB, hardware low blue light, 3-side borderless, Touch

Storage: 512GB SSD M.2 2280 PCIe® 4.0×4 NVMe®

Chipset: Intel® SoC Platform

Memory: 1x 8GB SODIMM DDR5-5200

Memory Slots: Two DDR5 SODIMM slots, dual-channel capable

Max Memory: Up to 24GB DDR5-5200

Storage: 512GB SSD M.2 2280 PCIe® 4.0×4 NVMe®

Optane Memory: None

Max Storage Support: One drive, up to 1TB M.2 SSD

Card Reader: No Card Reader

Optical: None

Audio Chip: High Definition (HD) Audio, Realtek® ALC233-CG codec

Speakers: 3Wx2, HARMAN

Camera: 5.0MP

Microphone: Dual Microphone

Power Supply: 90W 89% Adapter

Display: 23.8″ FHD (1920×1080) IPS Anti-glare 250nits, 100Hz, 99% sRGB, hardware low blue light, 3-side borderless, Touch

Touchscreen: 10-point Multi-touch

Keyboard: USB Calliope Keyboard, Black, English

Mouse: USB Calliope Mouse, Black

Expansion Slots: Two M.2 slots (one for WLAN, one for SSD)

Case Color: Luna Grey

Stand: AIO Stand

Wireless Charger: No Wireless Charger

Pen: Pen Not Supported

Form Factor: AIO (23.8 inches)

Dimensions (WxDxH): 540 x 192 x 431 mm (21.25 x 7.56 x 16.97 inches)

Weight: Around 6.0 kg (13.23 lbs)

WLAN + Bluetooth: Wi-Fi® 6, 802.11ax 2×2 + BT5.2

WWAN: WWAN Not Supported

Ethernet: Integrated 100/1000M

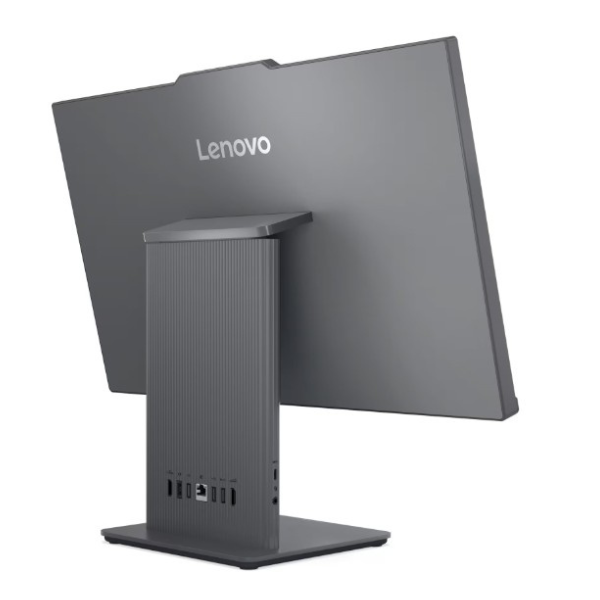

Rear Ports:
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (Hi-Speed USB / USB 2.0)
1x HDMI®-in 1.4
1x HDMI®-out 2.1 TMDS
1x Ethernet (RJ-45)
1x power connector

Left Ports: 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), data transfer only
1x headphone / microphone combo jack (3.5mm)

Security Chip: Firmware TPM 2.0 integrated in SoC

Physical Locks: No physical locks

Base Warranty: 1-year, Courier or Carry-in

Operating System: None

Green Certifications:
ErP Lot 3/7
GREENGUARD®
RoHS / WEEE / REACH
